Quick Start Guide
This guide provides essential instructions for the installation and wiring of the Honeywell D770 transformer. Ensure all electrical work is performed in accordance with local regulations.
Installation Steps

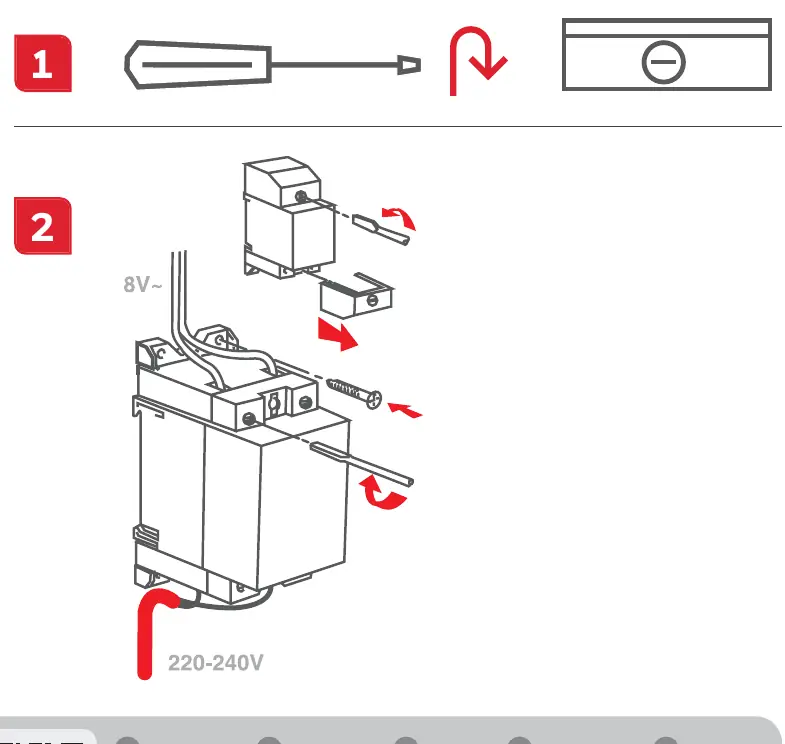

- Access Terminals: Use a screwdriver to open the terminal cover as indicated in the diagram.
- Wiring: Connect the 220-240V input power supply to the input terminals and the 8V output wires to the output terminals. Ensure all connections are secure and the cover is properly closed after installation.
Technical Specifications
- Input Voltage: 220-240V
- Output Voltage: 8V
- Current Rating: 0.5A
Manufacturer information
Honeywell International Inc.
Practical help
Common problems
No power output
Verify that the input voltage (220-240V) is correctly connected and that the terminal screws are tightened securely.
Before use
- Verify that the input power supply is 220-240V
- Ensure you have a suitable screwdriver for terminal access
- Confirm the mounting location is dry and suitable for electrical equipment
