E-flite Inflatable Tundra Tire and Beadlock Wheel Set (140mm)
High-performance 5.5-inch inflatable Tundra tires with beadlock wheels, designed for RC aircraft. Includes pump, adapters for various axle sizes, and durable construction for rough terrain.
Table of contents
Product Overview
The E-flite Inflatable Tundra Tire and Beadlock Wheel Set (5.5"/140mm) is a high-quality accessory designed for RC aircraft weighing up to 10–12 pounds (4.5–5.4 kg). These tires provide excellent shock absorption and versatility for various landing surfaces.
Technical Specifications
- Diameter: 5.5" (140mm) nominal; adjustable from 5.0" (127mm) to 5.75" (146mm)
- Axle Compatibility: 5mm hub; includes adapters for 3mm and 4mm axles
- Max Pressure: 3 psi
- Weight: 3.6oz (102g) without hubcaps; 3.7oz (106g) with hubcaps
- Air Valve: Standard sports ball inflation valve
Safety and Operation
Warning: This product is not a toy and is not intended for children under 14 years of age. Always operate with caution and common sense. Failure to follow instructions can result in property damage or serious injury.
To inflate or deflate, use the included air hose extension and needle. Wet the needle before insertion into the valve. Do not exceed 3 psi or a 5.75" (146mm) diameter. For rough surfaces, use lower tire pressure; for smooth surfaces, use higher pressure.
Installation
1. Remove existing wheels from the airplane axles.2. Select the appropriate axle adapter (if using 3mm or 4mm axles) and slide it onto the axle.3. Slide the wheel onto the axle and secure it using your existing wheel collars.4. If using the optional hubcaps, ensure the axle does not extend past the outer wheel hub. Snap the hubcap into place.
Maintenance and Repair

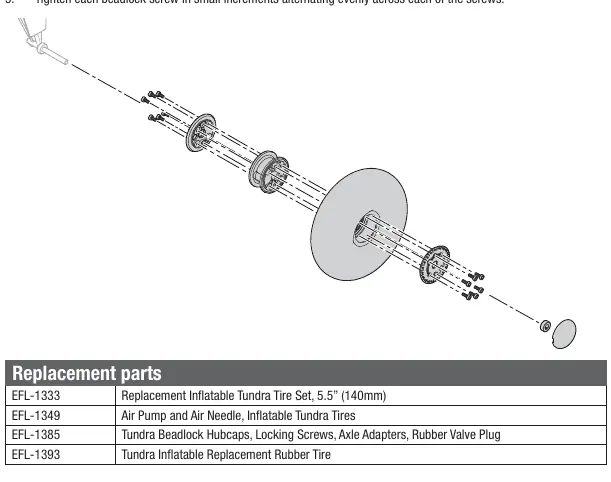

In the event of damage, the tires can be replaced or repaired using an inner tube repair kit. To access the tire, use a small flat-head screwdriver to remove the hubcap, then use a 1.5mm hex driver to remove the beadlock wheel hubs. When reassembling, tighten each beadlock screw in small, even increments to ensure a secure fit.
Disposal
This product is subject to WEEE regulations regarding the disposal of electrical and electronic equipment. Please do not dispose of this item with household waste; deposit it at an appropriate recycling facility.
