Installation Instructions for House Of Hampton Double Rod Set (72-144")
A quick installation guide for the House Of Hampton Double Rod Set (72-144" / 183-366cm). Learn how to mount brackets, configure the rod length, and install your curtains.
Quick answers from the manual
Quick answer
- This guide provides instructions for installing the House Of Hampton Double Rod Set, covering wall mounting, bracket configuration, and rod assembly. p. 1
Key actions
- Mark the insertion position p. 1
- Install self-drilling anchors p. 1
- Attach brackets p. 1
- Assemble and place rods p. 1
Maintenance and reset
- Clean with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Adjustable Length | 72-144 inches (183-366 cm) | Total extendable range of the rod set. | p. 1 |
Where to find it in the PDF

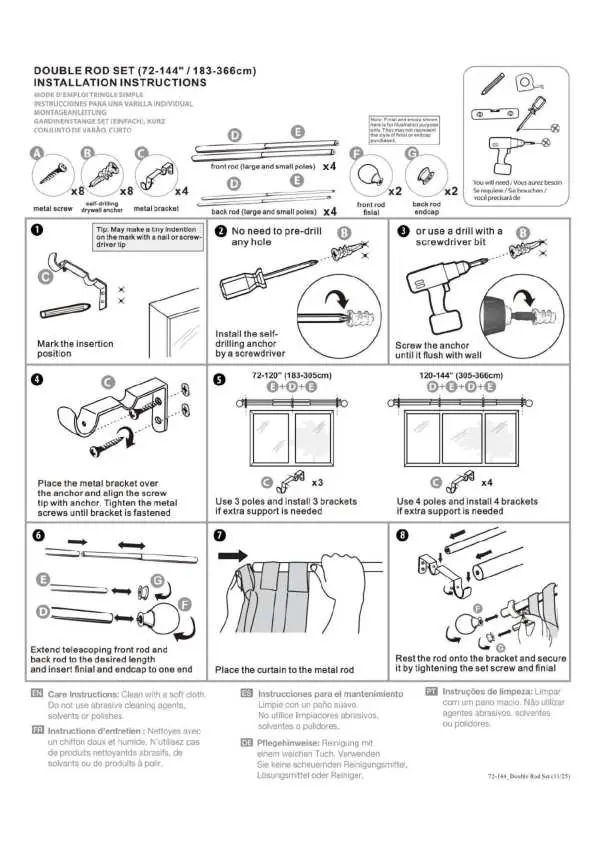

- Installation Instructions p. 1
Table of contents
Quick guide from the manual
This document provides installation instructions for the House Of Hampton Double Rod Set (72-144"). The installation requires a drill and a screwdriver. Ensure you use the correct number of brackets based on the rod length to ensure stability.
Parts List
- Metal screws
- Self-drilling drywall anchors
- Metal brackets
- Front rods (large and small)
- Back rods (large and small)
- Front rod finials
- Back rod endcaps
Installation Steps
- Marking: Mark the insertion position on the wall.
- Anchors: Install the self-drilling anchors using a screwdriver. No pre-drilling is required. Screw until the anchor is flush with the wall.
- Brackets: Place the metal bracket over the anchor and tighten the metal screws until the bracket is fastened.
- Configuration: Use 3 brackets for lengths 72-120" (183-305cm) and 4 brackets for lengths 120-144" (305-366cm).
- Assembly: Extend the telescoping front and back rods to the desired length. Insert the finial and endcap.
- Finalizing: Place the curtain on the rod, rest the rod onto the brackets, and secure by tightening the set screw and finial.
Care Instructions
Clean with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes.
Practical help
Common problems
Ensure you are using the correct number of brackets: 3 brackets for 72-120" lengths and 4 brackets for 120-144" lengths.
Ensure the self-drilling anchor is screwed flush with the wall surface before attaching the bracket.
Before use
- Pencil for marking
- Verify rod length (72-144")
- Verify bracket count based on length
