Assembly Instructions for IKEA LÄCKÖ 2-Seat Sofa

Step-by-step assembly guide for the IKEA LÄCKÖ 2-Seat Sofa. This manual includes a complete parts list, hardware identification, and detailed instructions to help you assemble your furniture correctly.

Quick answers from the manual

Quick answer

  • This document provides step-by-step assembly instructions for the IKEA LÄCKÖ 2-Seat Sofa, including a parts list and hardware identification. p. 1, 2

Key actions

  • Assemble on a soft surface p. 2
  • Tighten all screws p. 8

Where to find it in the PDF

  • Parts list p. 2
  • Assembly steps p. 3, 4, 5, 6
Table of contents

Manual images

Click an image to enlarge
Parts list including screws and Allen key Page 2 Step 1: Initial frame assembly Page 3 Step 7: Attaching the backrest Page 7

Quick guide from the manual

This manual provides assembly instructions for the IKEA LÄCKÖ 2-Seat Sofa. Before starting, ensure you have a clear, soft surface (such as a rug) to assemble the furniture on to prevent scratches. Do not use power tools to avoid damaging the material. If you encounter difficulties, refer to the diagrams for correct part orientation.

Parts list

Before beginning assembly, verify you have all the following components:

Parts list including screws and Allen key
Parts list including screws and Allen key
  • 8x Screw (10096939)
  • 2x Screw (10082207)
  • 2x End caps
  • 1x Allen key (100092)

Assembly instructions

Follow these steps to assemble your sofa:

Step 1: Initial frame assembly
Step 1: Initial frame assembly

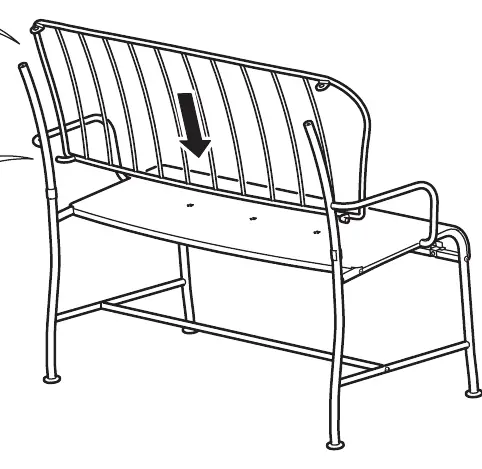

Step 7: Attaching the backrest
Step 7: Attaching the backrest
  1. Step 1-4: Connect the main frame components using the 10096939 screws. Ensure the orientation matches the diagrams.
  2. Step 5-6: Attach the support bars using the specified screws.
  3. Step 7-8: Attach the backrest to the frame. Secure with the 10082207 screws using the provided Allen key.
  4. Step 9: Perform a final check and tighten all screws across the frame.

Manufacturer information

IKEA

Brand profile
Manufacturer website https://www.ikea.com Support https://www.ikea.com/us/en/customer-service/

Practical help

Common problems

Missing parts

Check the packaging thoroughly. If parts are missing, contact IKEA customer service.

Difficulty tightening screws

Ensure you are using the correct screw type (10096939 vs 10082207) as indicated in the diagrams.

Before use

  • Clear a large space for assembly
  • Use a rug or soft surface to protect the floor and furniture
  • Identify all parts listed on page 2
