Assembly Instructions for IKEA ORMARYD 2-Seat Sofa

Step-by-step assembly guide for the IKEA ORMARYD 2-Seat Sofa. Includes a parts list, hardware identification, and clear instructions for frame assembly, leg attachment, and cushion placement.

Quick answers from the manual

Quick answer

  • The IKEA ORMARYD 2-Seat Sofa requires a two-person assembly process. Ensure you have a clear, flat area to work and do not use power tools to avoid damaging the furniture. p. 2, 3

Key actions

  • Unpack the sofa and remove cushions from the frame. p. 3
  • Install threaded rods into the frame. p. 4
  • Attach side panels and secure the frame. p. 5, 6
  • Attach legs to the bottom of the sofa. p. 6

First start

  • Place the cushions back onto the assembled frame. p. 7

Where to find it in the PDF

  • Parts List p. 2
  • Assembly Steps p. 3, 4, 5, 6
Table of contents

Manual images

Click an image to enlarge
Hardware and components included Page 2 Unpacking the sofa Page 3 Installing threaded rods Page 4 Attaching side panels Page 5 Attaching legs Page 6 Final assembly Page 7

Quick guide from the manual

The IKEA ORMARYD 2-Seat Sofa assembly is a straightforward process that is best performed by two people. Please ensure you have a clear, flat area to work. Do not use power tools, as they may damage the furniture components. The manual uses universal pictograms to guide you through the process.

Parts list

Before beginning, verify that you have all the necessary components:

Hardware and components included
Hardware and components included
  • Washers (8x)
  • Large washers (2x)
  • Nuts (8x)
  • Legs (4x)
  • Threaded rods (8x)
  • Assembly tool (1x)

Assembly steps

Unpacking the sofa
Unpacking the sofa
Installing threaded rods
Installing threaded rods
Attaching side panels
Attaching side panels
Attaching legs
Attaching legs
Final assembly
Final assembly

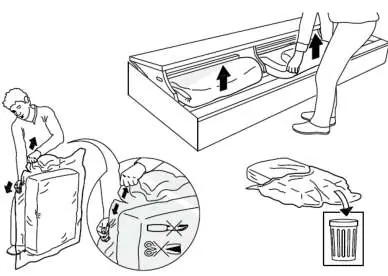

  1. Unpacking: Carefully remove the sofa from the packaging. Remove the cushions from inside the frame.
  2. Threaded rods: Install the threaded rods into the designated holes on the frame sections.

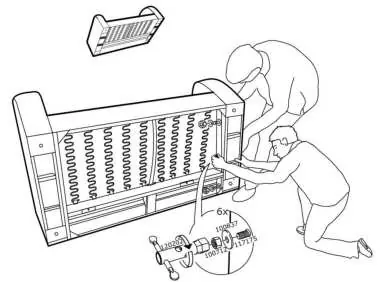

  3. Side panels: Align and attach the side panels to the main frame.
  4. Securing: Use the provided assembly tool to tighten the nuts and washers to secure the frame structure. Ensure all connections are firm.

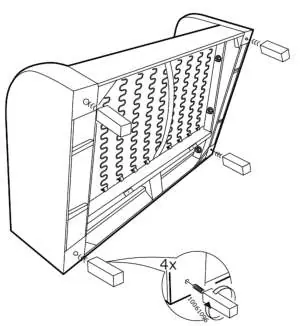

  5. Legs: Attach the four legs to the bottom of the sofa frame.

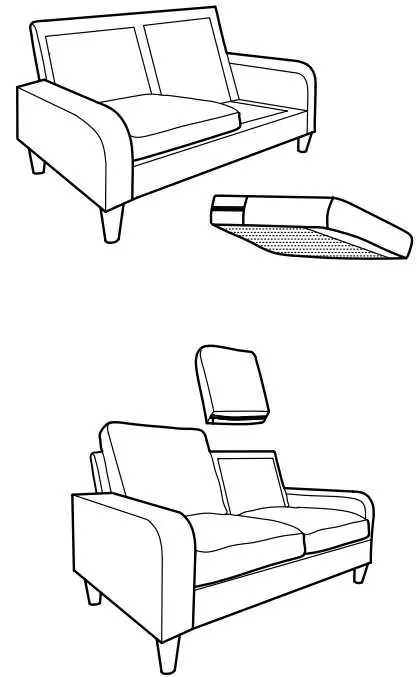

  6. Final setup: Place the cushions back onto the assembled sofa frame.

Manufacturer information

IKEA

Brand profile
Manufacturer website https://www.ikea.com Support https://www.ikea.com/us/en/customer-service/

Practical help

Common problems

Missing parts

Check all packaging materials, including the inside of the sofa frame. If parts are missing, contact IKEA customer support.

Difficulty aligning parts

Ensure the sofa is on a flat surface. Do not fully tighten bolts until all parts are aligned and in place.

Before use

  • Clear a large space for assembly
  • Have a second person to assist with lifting and holding parts
  • Verify all parts against the parts list
  • Do not use power tools
