IKEA PAX Corner Wardrobe Assembly Guide

Product Overview

The IKEA PAX corner wardrobe is a modular storage solution designed for efficient use of corner spaces. This guide provides the necessary steps to assemble the frame and install the door mechanisms correctly.

Safety and Preparation

Before beginning assembly, ensure you have a clear workspace. It is recommended to assemble the unit with two people to avoid injury or damage to the components. Use a spirit level to ensure the frame is perfectly vertical and horizontal before securing it. Always use the provided tools and hardware to ensure structural integrity.

Assembly Steps

• Frame Preparation: Begin by aligning the frame components. Ensure all panels are correctly oriented before tightening any screws.

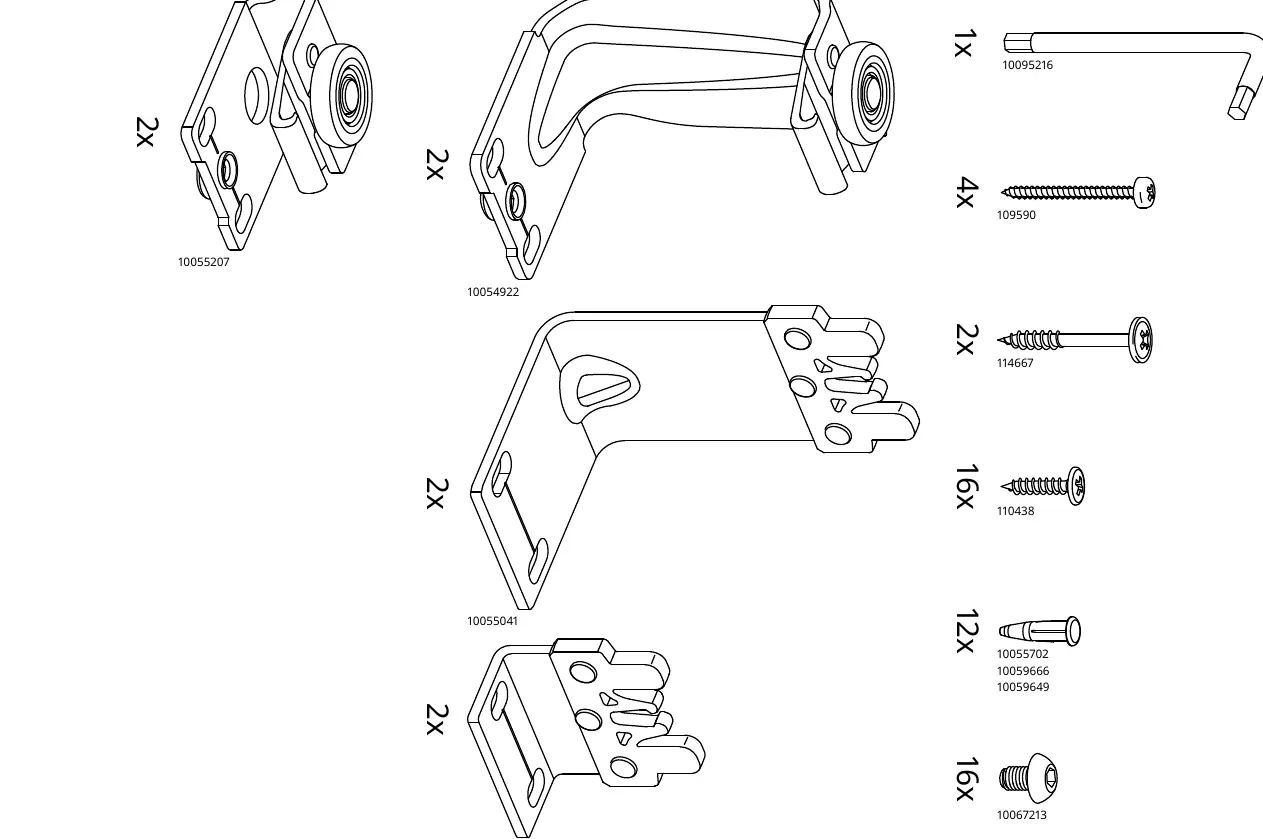

• Hardware Installation: Attach the mounting brackets and runners using the specified screws (e.g., 109590, 110438). Refer to the detailed diagrams for the exact placement of each bracket.
• Door Mounting: Once the frame is secure, install the door runners and hinges. Ensure the rollers are properly seated in the tracks.

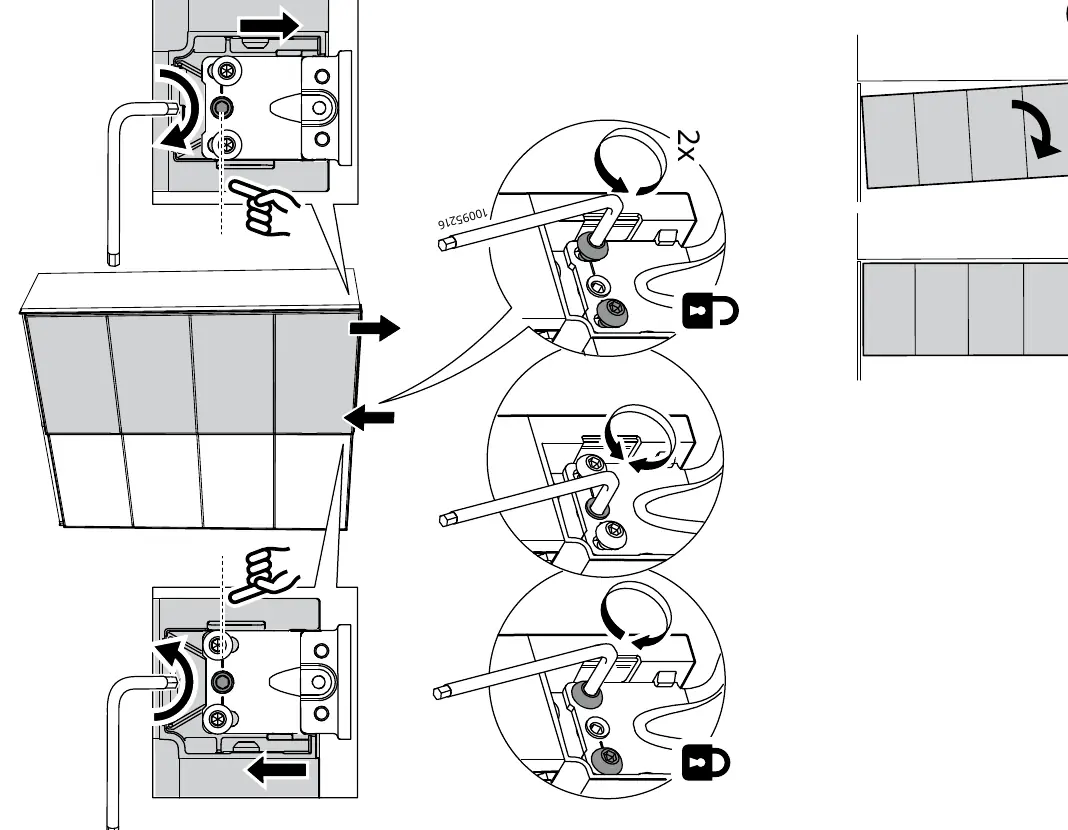

• Alignment: After the doors are hung, use the adjustment screws to align them perfectly within the frame. This ensures smooth operation and a clean aesthetic.

Maintenance and Care

To maintain your wardrobe, periodically check that all screws are tight. Clean surfaces with a damp cloth and mild detergent. Avoid using abrasive cleaners that may damage the finish. If the doors become misaligned over time, use the adjustment screws to re-center them.

Troubleshooting

If the doors do not slide smoothly, check the tracks for debris and ensure the rollers are correctly engaged. If the frame feels unstable, verify that all structural screws are fully tightened and that the unit is level against the wall.

Disposal

When disposing of the product, please follow your local recycling regulations. Separate the wood, metal, and plastic components to ensure they are processed correctly at your local waste management facility.
