IKEA PAX Wardrobe Cabinet Assembly Guide

Product Overview

The IKEA PAX wardrobe cabinet is a modular storage solution designed for home organization. This manual provides detailed instructions for the assembly and secure installation of the cabinet frame. Please ensure you have all necessary components and tools before beginning the assembly process.

Safety and Preparation

Safety is paramount during the assembly of furniture. Please adhere to the following guidelines:

• Wall Mounting: The cabinet must be securely attached to the wall to prevent tipping. Ensure the wall structure is suitable for mounting.

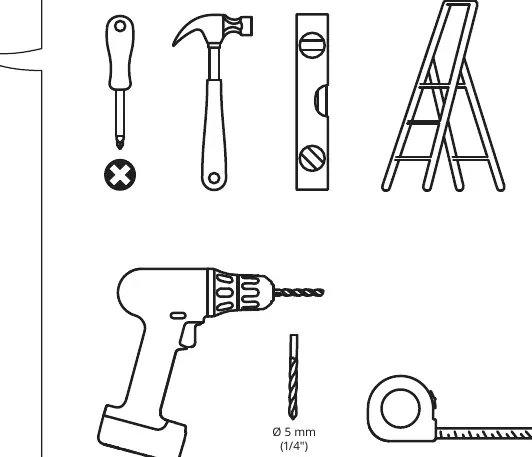

• Tools Required: You will need a screwdriver, hammer, spirit level, ladder, tape measure, and a power drill with a 5 mm (1/4") bit.
• Workspace: Assemble the unit on a soft surface, such as a rug, to prevent damage to the panels.
• Assistance: Due to the size and weight of the components, it is recommended that two people perform the assembly.

Assembly Instructions

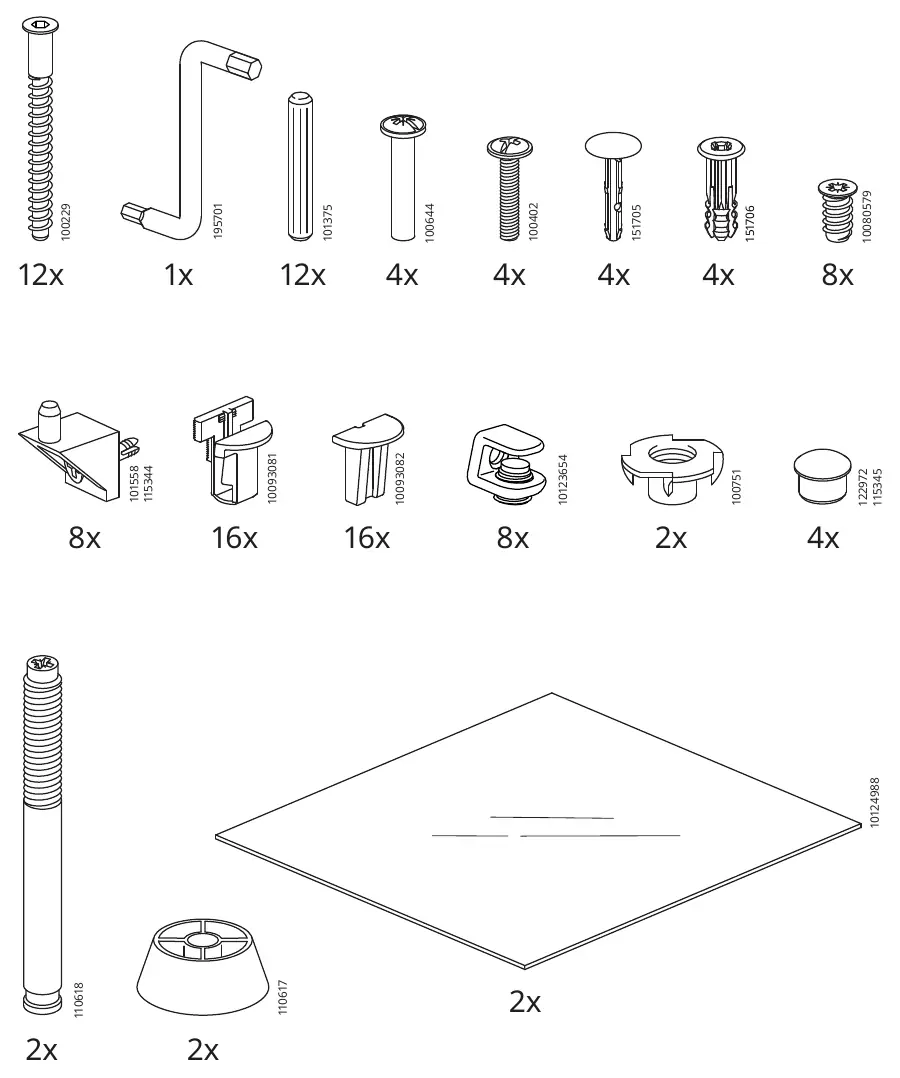

The assembly process involves connecting the side panels, base, and top sections using the provided hardware. Follow the numbered steps carefully:

• Prepare the panels by inserting dowels and cam locks as indicated in the diagrams.
• Connect the frame sections and secure them with the provided screws using the included hex key.
• Ensure the frame is perfectly level before final tightening.
• Install the back panel and secure it using the provided clips.
• Once the frame is assembled, position it against the wall and use the appropriate mounting hardware to secure it firmly.

Maintenance and Care

To keep your PAX wardrobe in optimal condition, wipe the surfaces with a clean, damp cloth. Avoid using harsh chemicals or abrasive cleaners. Periodically check all screws and fittings to ensure they remain tight and secure. If you encounter any issues during assembly or notice missing parts, contact your local store for assistance.

Disposal

When the product reaches the end of its life, please dispose of it according to local waste management regulations. Many components are recyclable; consider disassembling the unit to separate materials for proper recycling.
