This document provides installation and safety instructions for the Innr OSL 13x C and OSL 23x C smart spots. These devices are designed for outdoor use. Ensure all components are present before starting installation.
Installation

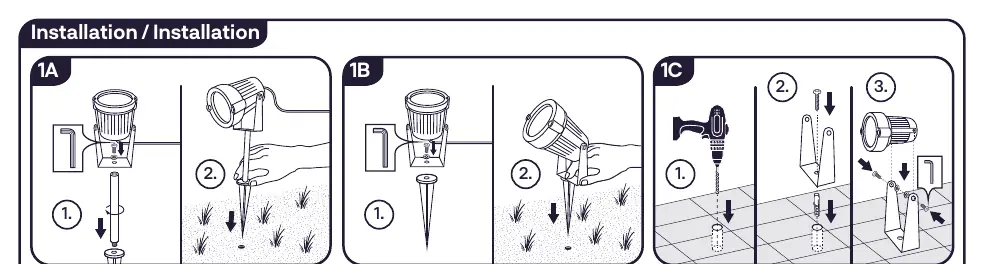

There are three primary installation methods depending on your surface:
- 1A (Ground Spike): Insert the spike into the ground and attach the spot.
- 1B (Surface Mount): Secure the base directly to the surface.
- 1C (Wall/Hard Surface): Use appropriate screws/anchors to mount the bracket to a wall or hard surface, then attach the spot.
Connection and power
You can daisy-chain multiple spots together. Connect the spots in a series using the provided cables. Finally, connect the system to the power adapter and plug it into a wall outlet.
Safety and maintenance
- Suitable for outdoor use.
- Do not disassemble the product. If any part is damaged, stop using it immediately.
- Do not immerse the product in water.
- Clean using only a damp cloth. Never use strong cleaning agents.
Service
For support, contact [email protected] or visit www.innr.com.
Official resources from the manual
Manufacturer information
Innr Lighting
Practical help
Common problems
Check power connection and ensure all daisy-chain connectors are securely fastened.
Do not use the product if any part is damaged; contact support.
Before use
- Ensure the location is suitable for outdoor use.
- Check that all parts are present (spot, spike, cable, etc.).
- Do not immerse in water.
- Ensure you have a damp cloth for cleaning.
