Invicta Interior 46022 Series Floor Lamp Assembly Guide

Product Overview

The Invicta Interior floor lamp (series 46022/46023/46024) is a stylish 170cm lighting fixture designed for indoor use. This elegant floor lamp features a multi-arm structure that supports several glass shades, providing a modern aesthetic to any living space.

Technical Specifications

• Model Series: 46022, 46023, 46024
• Height: 170 cm
• Bulb Type: G9 LED
• Maximum Wattage: 3W per socket
• Bulbs Included: No

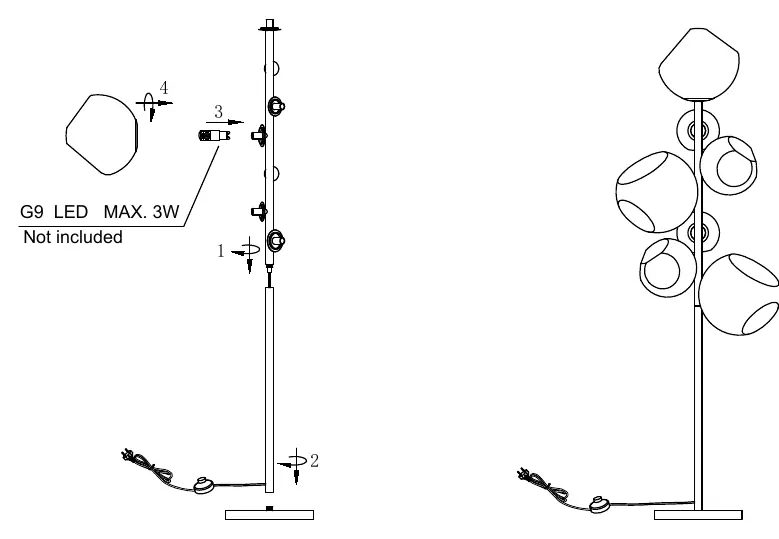

Assembly Instructions

Before beginning assembly, ensure all parts listed in the construction parts section are present. The assembly process involves connecting the main vertical support structure to the base and attaching the individual glass shades to the designated sockets.

• Base Assembly: Secure the main vertical pole (Part A) to the base (Part B) using the provided hardware. Ensure the connection is tight and stable.
• Shade Installation: Carefully attach the glass shades (Parts C, D, and E) to the lamp arms. Ensure each shade is securely fastened to prevent accidental detachment.
• Bulb Installation: Insert the G9 LED bulbs (max 3W) into the sockets. Do not exceed the maximum wattage to avoid overheating or damage to the fixture.

Safety and Maintenance

To ensure the longevity and safety of your floor lamp, please follow these guidelines:

• Always disconnect the power supply before cleaning or replacing bulbs.
• Use only the specified G9 LED bulbs with a maximum power of 3W.
• Clean the glass shades and metal frame with a soft, dry cloth. Avoid using abrasive cleaners or chemicals that may damage the finish.
• Regularly check that all connections and screws remain tight.
• If the power cord or plug shows signs of damage, discontinue use immediately and contact a qualified professional or your dealer for assistance.

Disposal

When the product reaches the end of its service life, please dispose of it in accordance with local environmental regulations. Do not discard electrical components in household waste; utilize designated recycling facilities for electronic equipment.
