Quick Guide for Assembly
This document provides assembly instructions for the Invicta Interior GATSBY coffee table. Please ensure you have all parts before beginning. The maximum load capacity for this table is 50 kg.
Parts List
- A: M8*35 mm screws (x4)
- B: M5 tool (x1)
- C: M6*16 mm screws (x16)
- D: M4 tool (x1)
- E: Frame parts (x2)
- F: Frame parts (x2)
- G: Frame parts (x2)
- H: Frame part (x1)
- I: Small parts (x7)
- J: Tabletop (x1)

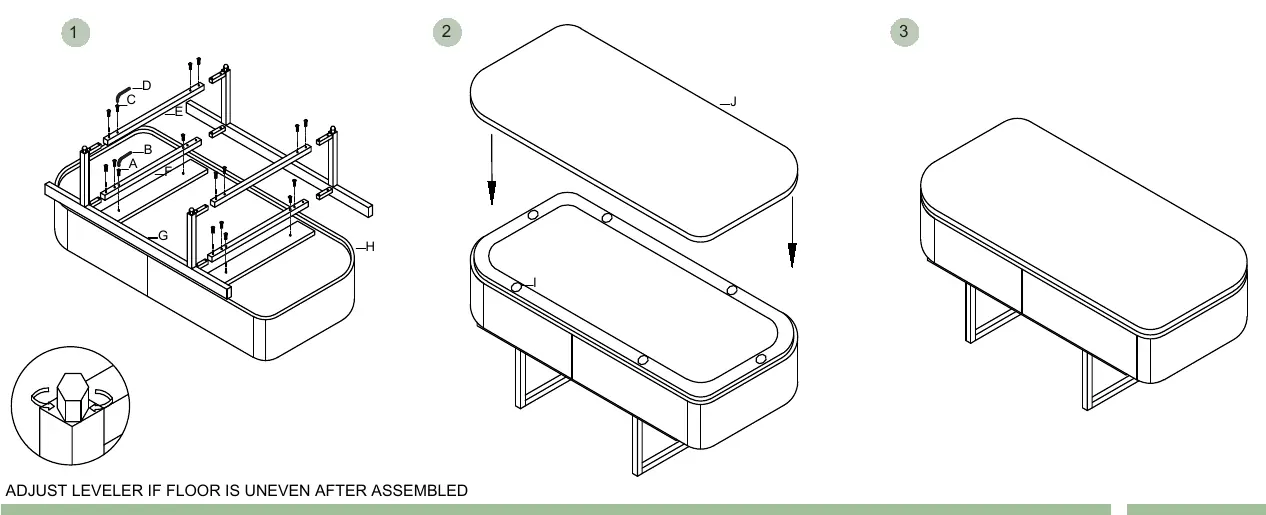

Assembly Instructions
- Frame Assembly: Connect the frame components (E, F, G, H) using the provided screws (C) and the M4 tool (D). Ensure all connections are secure.
- Attaching the Top: Place the tabletop (J) onto the assembled frame structure.
- Final Check: Ensure the table is stable and all screws are tightened.
Maintenance and Adjustments
If the floor is uneven after assembly, adjust the levelers located on the feet of the table to ensure stability.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Table is unstable or wobbles
Adjust the levelers on the feet of the table to compensate for uneven floor surfaces.
Before use
- Verify all parts (A-J) are present
- Ensure you have the M4 and M5 tools
- Assemble on a soft surface to avoid scratching the tabletop
