Assembly Instruction for Invicta Interior Floor Lamp 46022/46023/46024
Quick assembly guide for Invicta Interior floor lamps 46022, 46023, and 46024. Includes parts list, bulb requirements, and step-by-step installation instructions.
Table of contents
Quick guide from the manual
This document provides assembly instructions for the Invicta Interior floor lamp series 46022, 46023, and 46024. The assembly process involves connecting the stand to the base, installing the bulbs, and attaching the glass shades. Please note that bulbs are not included.
Parts list
- A: Stand (x1)
- B: Base (x1)
- C: Glass shade type 1 (x3)
- D: Glass shade type 2 (x2)
- E: Glass shade type 3 (x2)
Assembly instructions
- Connect the stand (A) to the base (B).
- Insert the G9 LED bulbs (not included) into the sockets on the stand.
- Attach the glass shades (C, D, E) to the corresponding fixtures on the stand.
Technical specifications
The lamp requires G9 LED bulbs with a maximum power of 3W each. Bulbs are not included with the product.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Before use
- Verify all parts (A, B, C, D, E) are included in the package
- Purchase G9 LED bulbs (max 3W) separately as they are not included
- Ensure the assembly area is stable and clean
Images and diagrams

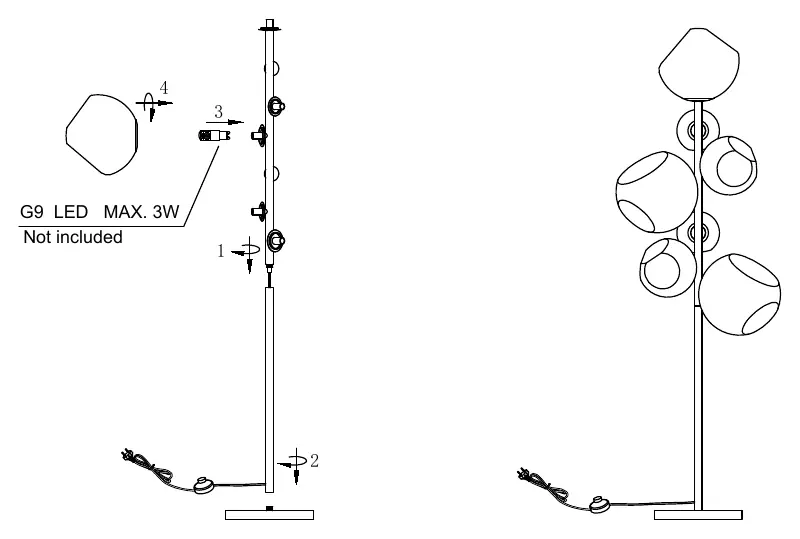

- The diagram illustrates the connection of the stand to the base and the placement of the glass shades onto the bulb sockets.
