Assembly Instruction for Invicta Interior Liquid Diamond Floor Lamp 46024
Quick assembly guide for the Invicta Interior Liquid Diamond floor lamp (model 46024). Includes parts list, bulb requirements, and step-by-step installation instructions.
Quick answers from the manual
Quick answer
- The Invicta Interior Liquid Diamond floor lamp is assembled by attaching the main pole to the base, installing G9 LED bulbs (max 3W), and attaching the glass shades. p. 1
Key actions
- Attach main pole to base p. 1
- Install G9 LED bulbs p. 1
- Attach glass shades p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | G9 LED | Required bulb type | p. 1 |
| Max Wattage | 3W | Maximum power per bulb | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
Table of contents
Quick guide from the manual
This document provides assembly instructions for the Invicta Interior Liquid Diamond floor lamp (models 46022, 46023, 46024). Ensure all parts are present before beginning assembly. The lamp requires G9 LED bulbs, which are not included.
Parts list
- A: Main pole structure (x1)
- B: Base (x1)
- C: Glass shade type 1 (x3)
- D: Glass shade type 2 (x2)
- E: Glass shade type 3 (x2)

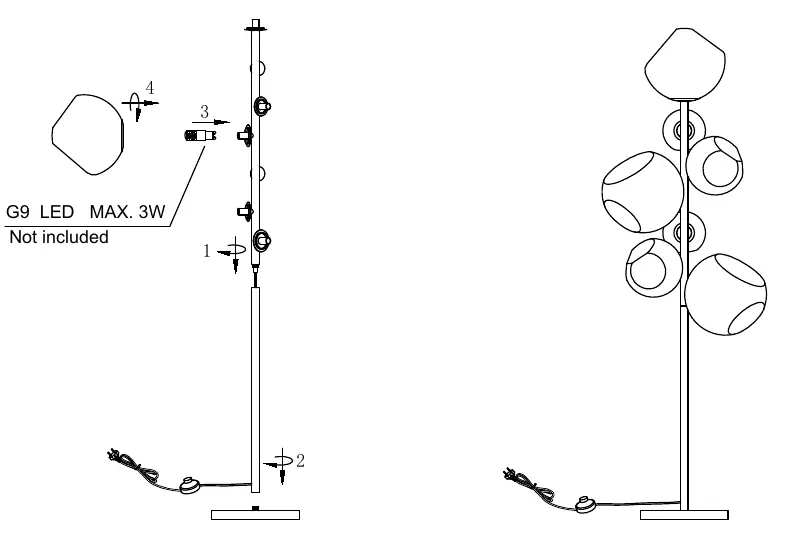

Assembly instructions
- Attach the main pole (A) to the base (B).
- Secure the connection at the base.
- Install the G9 LED bulbs (max 3W) into the sockets on the main pole.
- Attach the glass shades (C, D, E) to the corresponding sockets on the main pole.
Technical requirements
The lamp requires G9 LED bulbs with a maximum power of 3W. Bulbs are not included with the product.
Contact
For questions regarding this article, please contact your dealer or the manufacturer: Invicta Interior GmbH & Co KG, Kirchenweg 8, 24568 Nützen. Email: [email protected]. Phone: 04101 - 80 40 615.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Purchase G9 LED bulbs (max 3W) separately before assembly.
Verify all parts (A, B, C, D, E) are present before starting assembly.
Before use
- Check all parts against the parts list
- Ensure you have G9 LED bulbs (max 3W)
- Prepare a clear area for assembly
