Quick Assembly Guide

This document provides the assembly instructions for the Invicta Interior Sideboard (Article No. 45478). Before beginning assembly, ensure all parts listed are present and undamaged.

Parts List

A1: Sideboard body (x1)
A2: Support leg (x2)
B1: Washer (x2)
B2: Screw 6x16mm (x2)
B3: Wall plug (x2)

Assembly Instructions

To assemble the sideboard, attach the support legs (A2) to the main body (A1). Secure each leg using the provided screws (B2) and washers (B1). If wall mounting is required, use the included wall plugs (B3).

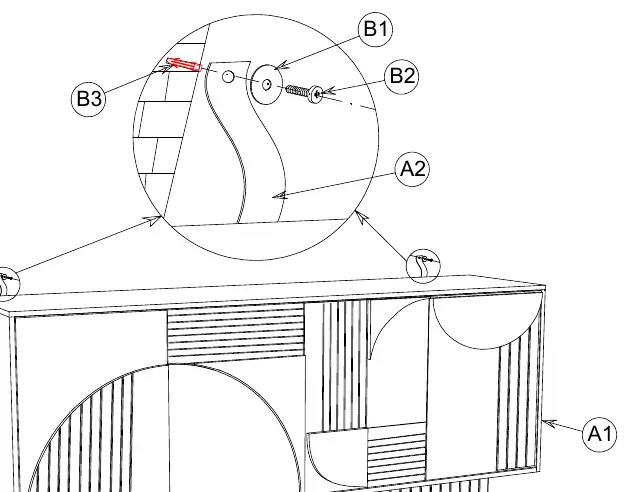

Assembly diagram showing the attachment of the support leg to the sideboard body.

Manufacturer Contact

For any questions regarding this article, please contact your dealer or the manufacturer directly:

Invicta Interior GmbH & Co KGKirchenweg 8, 24568 NützenEmail: [email protected].: 04101 - 80 40 615

Manufacturer information

Invicta Interior GmbH & Co. KG

Brand profile

Manufacturer website https://www.invicta-interior.com/

Practical help

Common problems

Missing parts or hardware

Contact your dealer or the manufacturer directly using the provided contact details.

Before use

Verify all parts (A1, A2, B1, B2, B3) are present
Ensure you have the necessary tools (screwdriver)
Check wall suitability if using wall plugs (B3)
