Invicta Interior 43343 Table Assembly Instructions
Quick assembly guide for the Invicta Interior 43343 table. Includes a parts list, step-by-step installation instructions, and tips for leveling the table on uneven floors.
Table of contents
Important Assembly Information
Before starting, ensure you have a soft surface like a mat or carpet to assemble the table on to prevent scratches. The maximum load capacity for this table is 30kg. If the table is unstable after assembly, adjust the levelers on the feet.
Parts List
- A: M8*40mm screws (x20)
- B: M5 Allen key (x1)
- C: Crossbar (x1)
- D: Legs (x2)
- E: Tabletop (x2)
- F: Pads (x5)
- G: Glass plate (x1)

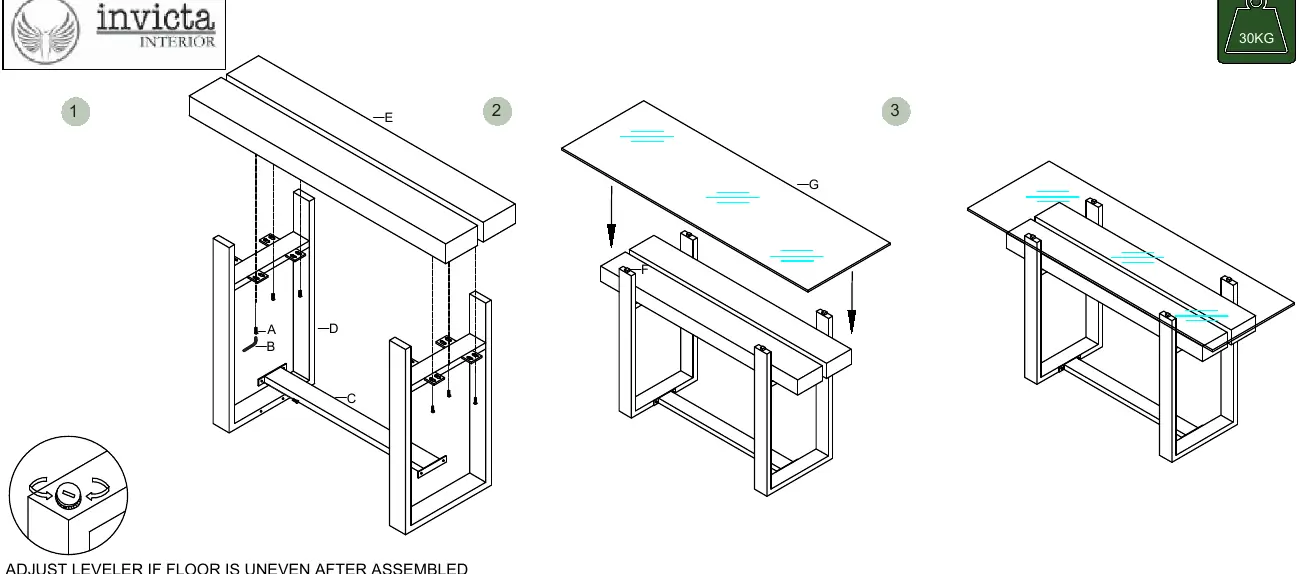

Assembly Instructions
- Step 1: Attach the legs (D) and the crossbar (C) to the tabletop (E) using the provided screws (A) and the Allen key (B).
- Step 2: Place the pads (F) onto the frame structure.
- Step 3: Carefully place the glass plate (G) onto the frame.
Adjustments
If the floor is uneven after assembly, adjust the levelers located on the feet of the table to ensure stability.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Adjust the levelers on the feet of the table to compensate for uneven flooring.
Before use
- Ensure all parts (A-G) are present before starting
- Prepare a soft surface (mat or carpet) to protect the furniture during assembly
- Verify the maximum load capacity of 30kg
- Ensure you have the M5 Allen key (B) provided
