Assembly Instructions for Invicta Art Deco Bar Cabinet 44088
Quick assembly guide for the Invicta Art Deco 140cm Bar Cabinet (model 44088). Includes a parts list and step-by-step mounting instructions.
Table of contents
Quick Assembly Guide
This document provides assembly instructions for the Invicta Art Deco Bar Cabinet (Article No. 44088). Please ensure all parts are accounted for before beginning the assembly process.
Construction Parts
Check the package contents against the following list:
- A1: Cabinet (x1)
- A2: Support/Leg (x2)
- B1: Washer (x2)
- B2: Screw 6x16mm (x2)
- B3: Wall plug (x2)
Assembly Instructions
Follow these steps to assemble the cabinet components:

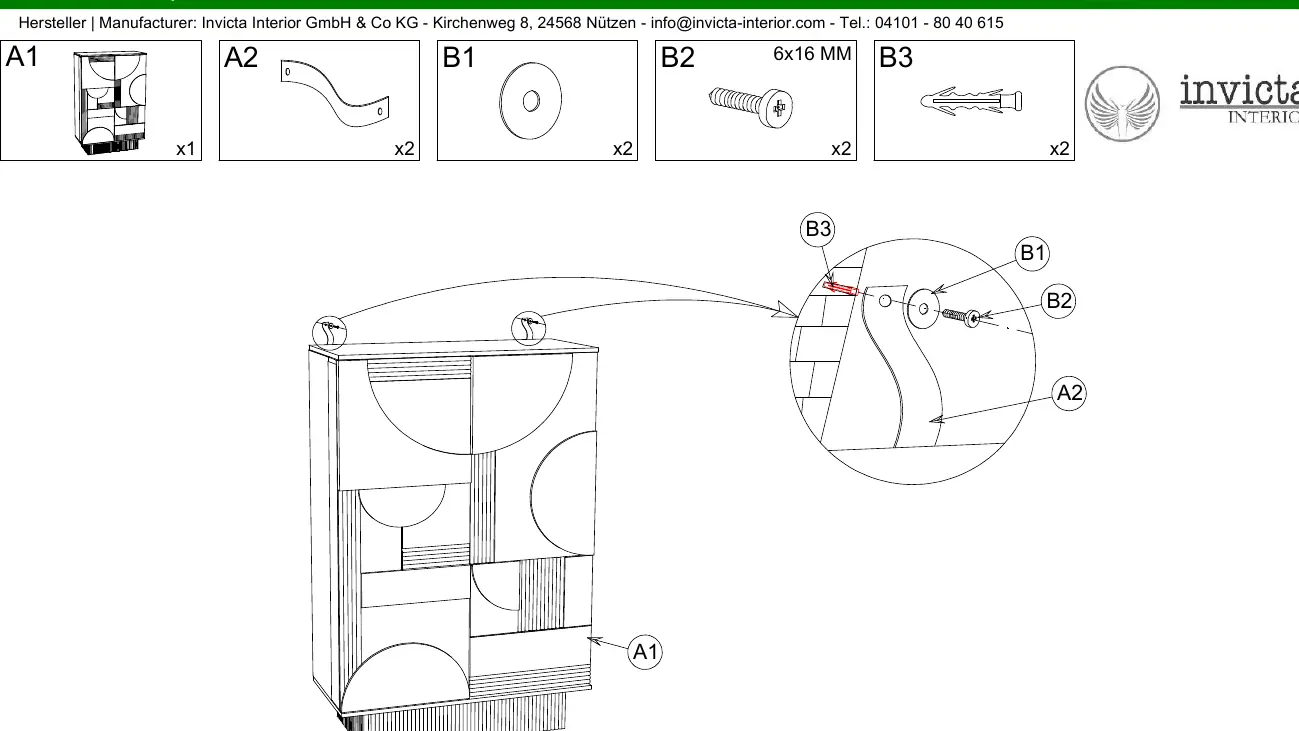

- Identify the support parts (A2) and the corresponding mounting points on the cabinet (A1).
- Place the washer (B1) onto the screw (B2).
- Attach the support part (A2) to the cabinet (A1) using the screw (B2) and washer (B1).
- If wall mounting is required, utilize the provided wall plug (B3) to secure the unit.
