Assembly Instructions for Ivy Bronx 014-HG-30424-WH Lounge Chair
Step-by-step assembly guide for the Ivy Bronx 014-HG-30424-WH lounge chair. Includes a complete parts list, hardware specifications, and detailed assembly steps to construct the frame and seat.
Table of contents
Quick guide from the manual
This document provides assembly instructions for the Ivy Bronx 014-HG-30424-WH lounge chair. If you encounter any issues during assembly, please contact customer service at [email protected].
Parts List
Before beginning, ensure all components are present:
- A: Side frames (x2)
- B: Crossbar (x1)
- C: Support bars (x2)
- D: Backrest/Seat fabric (x1)
- E: Seat cushion (x1)
- F: M6x25mm screws (x4)
- G: M6x35mm screws (x4)
- H: Allen key (x1)

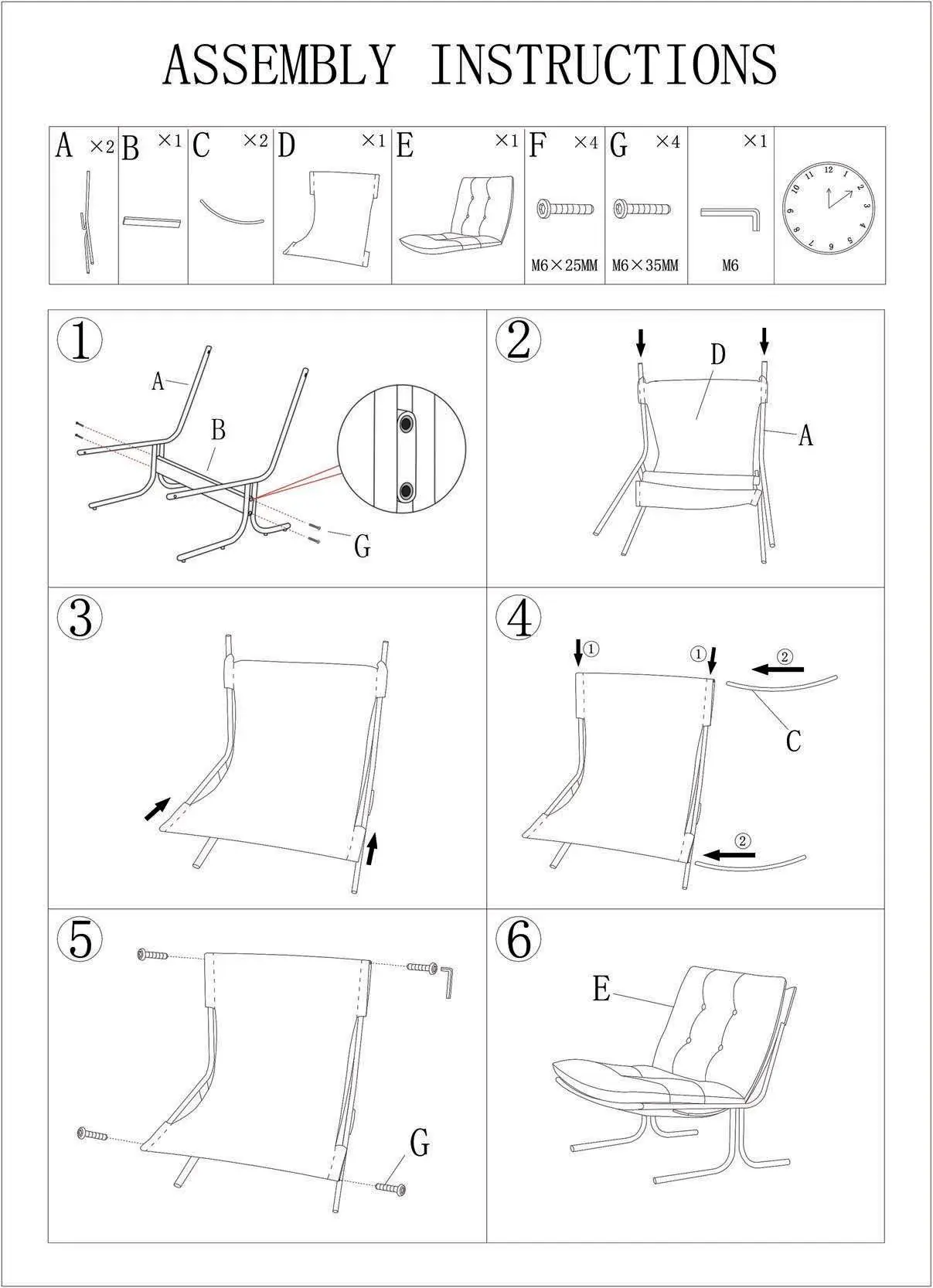

Assembly Instructions
- Frame Assembly: Connect the side frames (A) to the crossbar (B) using the M6x35mm screws (G).
- Backrest Attachment: Attach the backrest/seat fabric (D) to the top of the side frames (A).
- Positioning: Slide the backrest fabric (D) down slightly to install the front end, then pull it up into position.
- Support Bars: Insert the support bars (C) into the designated slots on the frame.
- Securing: Secure the structure using the M6x25mm screws (F) and the provided Allen key (H).
- Final Step: Place the seat cushion (E) onto the assembled frame.
Practical help
Common problems
Missing parts or assembly difficulties
Contact customer service at [email protected]
Before use
- Verify all parts A through H are present
- Clear a large, flat area for assembly
- Ensure the Allen key (H) is available
- Do not fully tighten screws until the frame is aligned
