User Manual for JBL Bar Studio Soundbar
Quick guide for the JBL Bar Studio soundbar. Learn about setup, technical specifications, included accessories, and key features like Bluetooth streaming and HDMI ARC connectivity.
Quick answers from the manual
Quick answer
- The JBL Bar Studio is a 2.0-channel soundbar with Bluetooth. It connects to your TV via HDMI ARC for enhanced audio and supports control via your existing TV remote. p. 1, 2
Key actions
- Connect the soundbar to your TV using a single HDMI cable (ARC). p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Total Maximum Power | 30W | Maximum power output | p. 2 |
| Bluetooth Version | 4.2 | Bluetooth connectivity standard | p. 2 |
Where to find it in the PDF
- Product Overview and Features p. 1
- Specifications and Box Contents p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

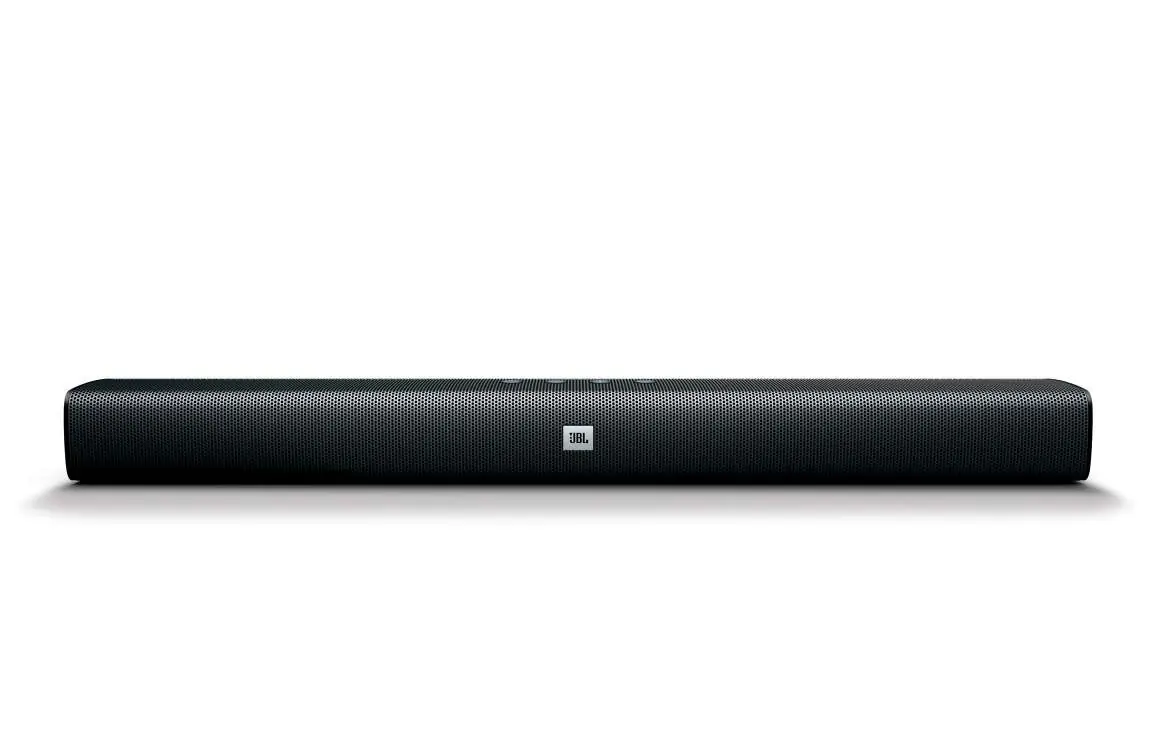

The JBL Bar Studio is a compact 2.0-channel soundbar designed to enhance TV audio. It features built-in dual bass ports, Bluetooth connectivity for wireless music streaming, and supports HDMI ARC for a simple, single-cable connection to your television. The system is designed to work with many existing TV remote controls.
What's in the box
- JBL Bar Studio Soundbar
- Remote control
- Optical cable & AUX cable
- Power adaptor
- Wall mount bracket kit
- Quick start guide
- Warranty card
- Safety sheet
Connectivity and features

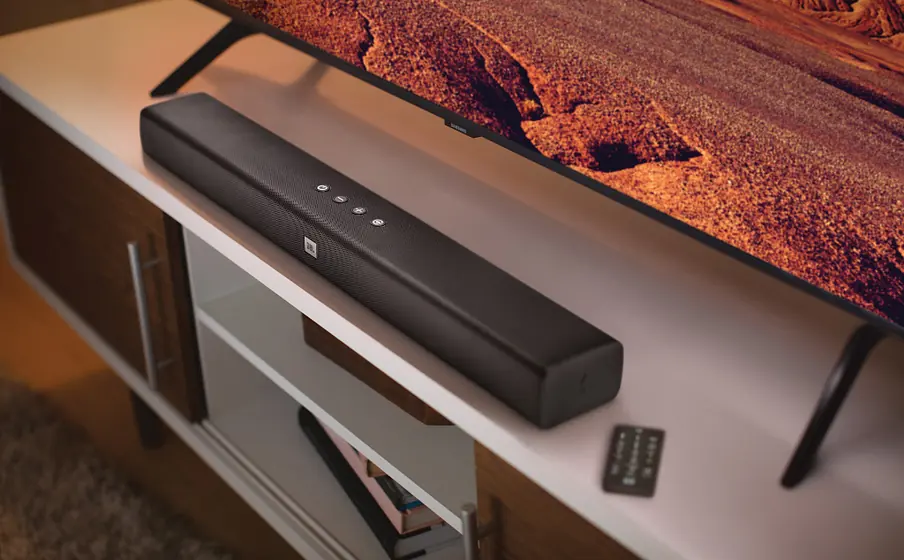

The soundbar is designed for ease of use. You can connect it to your TV using a single HDMI cable (ARC). It also supports wireless music streaming from mobile devices via Bluetooth. The system is compatible with many existing TV remote controls, allowing you to manage both devices with one remote.
Technical specifications
- Total Maximum Power: 30W
- Transducer Size: 2 x 2" woofer, 2 x 1.5" tweeter
- Frequency Response: 60Hz – 20kHz
- Max SPL: 90dB
- HDMI: 1 HDMI Video Output (with Audio Return Channel), HDCP Version 1.4
- Audio Inputs: 1 Analog, 1 Optical, Bluetooth, USB
- Bluetooth Version: 4.2
- Dimensions: 614 x 58 x 86 (mm)
- Weight: 1.4kg
Manufacturer information
JBL
Practical help
Before use
- Verify all items are present in the box
- Ensure your TV supports HDMI ARC for the best connection
- Connect the power adaptor to the soundbar and a power outlet
Specs in practice
- Transducer Size
- The size of the internal speakers (woofers and tweeters)
