KCT 160/200L Twin Wheel Barrow Assembly and User Guide

Product Overview

The KCT 160/200L Twin Wheel Barrow (models GWB322/GWB333) is a robust garden tool designed for heavy-duty transport tasks. Its twin-wheel configuration provides enhanced stability and balance, making it ideal for moving heavy loads across uneven terrain. The unit features a durable plastic base and a reinforced metal frame.

Assembly Instructions

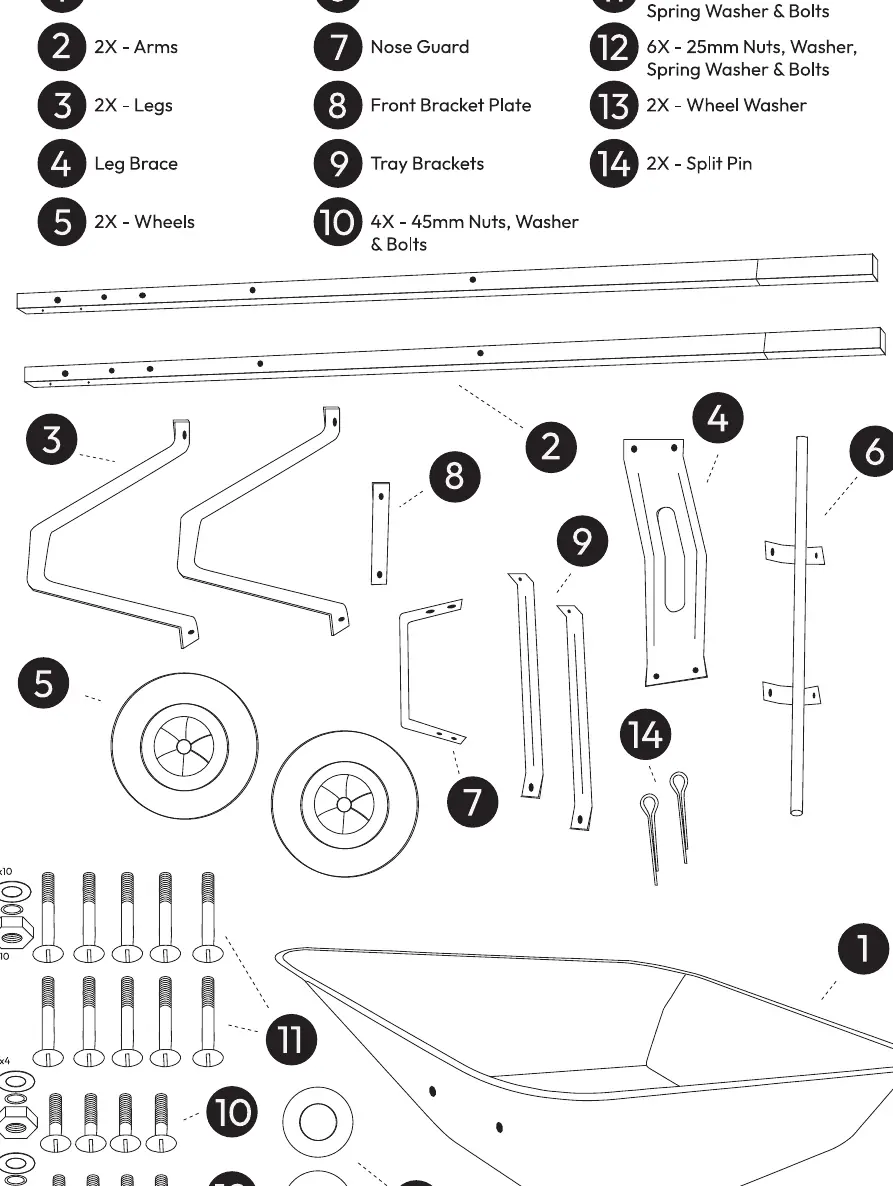

Before beginning assembly, ensure you have all the necessary components listed in the parts inventory, including the plastic base, arms, legs, leg brace, wheels, axle, nose guard, and various brackets. You will also need the provided nuts, bolts, washers, and split pins.

• Step 1: Align the arms onto the plastic base with handles facing the rear. Place the legs on top of the arms, ensuring the leg brace holes face the rear, and secure using four 75mm nuts and bolts.
• Step 2: Attach the nose guard to the front of the arms using four 45mm nuts and bolts.
• Step 3: Secure the axle to the bottom of the arms at the front using four 75mm nuts and bolts, then slide the wheels onto each end of the axle.
• Step 4: Secure each wheel using a wheel washer followed by a split pin. Insert the pin into the hole and bend the two sides to lock it in place.
• Step 5: Position the leg brace on the back side of the legs and fasten it using four 25mm nuts and bolts.
• Step 6: Secure the bottom side of the tray brackets to the legs using two 75mm nuts and bolts. Finally, attach the front bracket plate along with the other ends of the tray brackets to the plastic base using two 25mm nuts and bolts.

Safety and Maintenance

Important: Always ensure all bolts are secured tightly before every use. Regularly inspect the wheelbarrow for any loose fasteners or signs of wear. Check the wheels and axle periodically to ensure smooth rotation. If the unit is damaged, do not use it until repairs are made. Keep the wheelbarrow clean and store it in a dry area to prevent corrosion of the metal components.
