KIMO 1005A 12V Max Cordless Adjustable Clutch Drill
Comprehensive user manual for the KIMO 1005A 12V Max Cordless Drill, covering safety, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview
The KIMO 1005A is a versatile 12V Max Cordless Adjustable Clutch Drill designed for various drilling and fastening applications. It features a variable speed trigger, a forward/reverse control button that also acts as a lock-off mechanism, and a torque adjustment collar for precise control. The drill is powered by a 2.0 Ah lithium battery, ensuring reliable performance for home and professional tasks.
Safety Instructions
Prioritize safety by keeping your work area clean and well-lit. Always wear appropriate personal protective equipment, including eye protection, dust masks, and non-skid safety shoes. Avoid wearing loose clothing or jewelry that could get caught in moving parts. Ensure the tool is switched off before inserting the battery or changing accessories. Never operate the tool in explosive atmospheres or near flammable materials. Always hold the tool by insulated gripping surfaces when working near hidden wiring to prevent electric shock.
Operation and Battery Management
To install the battery, slide it into the tool until you hear an audible click. To remove it, press the battery release button. The drill includes a fuel gauge with three LED lights to monitor the remaining charge. Charging takes approximately 60 to 90 minutes. For optimal battery life, recharge the battery after each use and avoid fully discharging it. The torque adjustment collar allows you to select the appropriate setting for different screw sizes and materials. Use the forward/reverse button to select the rotation direction or lock the trigger in the center position.
Maintenance and Care
Regular maintenance is essential for tool longevity. Keep air vents and the motor housing free of dust and debris by wiping with a clean cloth or using low-pressure compressed air. Do not use harsh solvents for cleaning as they may damage plastic components. Always lock the trigger or remove the battery before performing any maintenance, changing accessories, or storing the tool. If the tool requires repairs, contact a KIMO factory service center. Store the tool and battery in a cool, dry place, away from extreme temperatures and moisture.
Manufacturer information
Zhejiang Kimo Power Tools Co., Ltd.
Practical help
Common problems
Unit will not operate
Check battery pack installation and ensure it is fully charged.
Battery pack will not charge
Ensure the charging cable is inserted properly, the charger is plugged into a working outlet, and the ambient temperature is between 40°F and 105°F.
Unit shuts off abruptly
Allow the battery pack to cool down if it reached its thermal limit, or recharge the battery.
Before use
- Ensure the work area is clean and well-lit.
- Wear eye protection and appropriate safety gear.
- Check that the battery is fully charged.
- Verify the forward/reverse switch is in the desired position.
- Ensure the drill bit or accessory is securely tightened in the chuck.
- Remove any adjusting keys or wrenches from the tool.
- Confirm the trigger switch is functioning correctly.
Images and diagrams

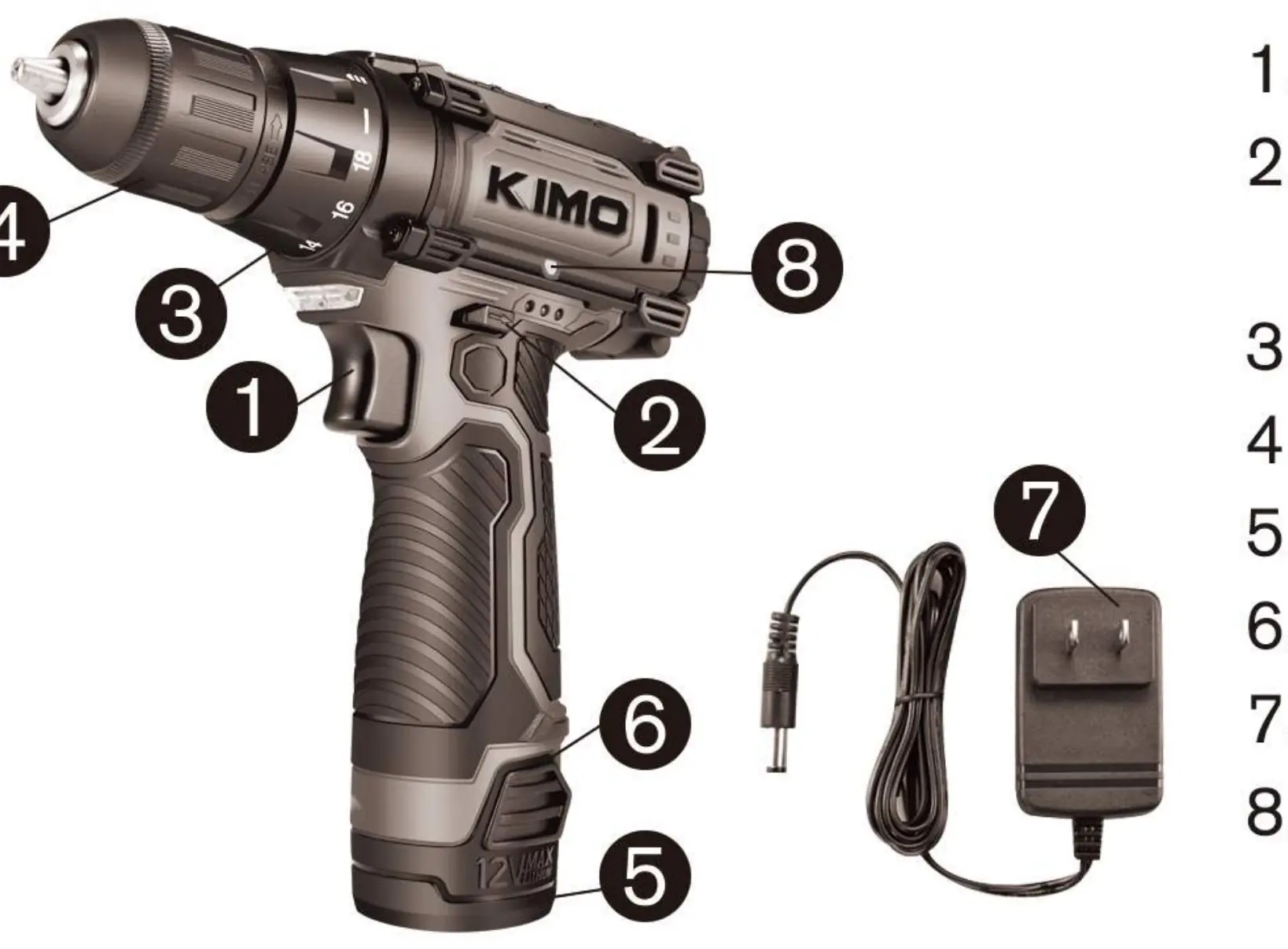

- Variable Speed Switch: Controls the rotation speed.

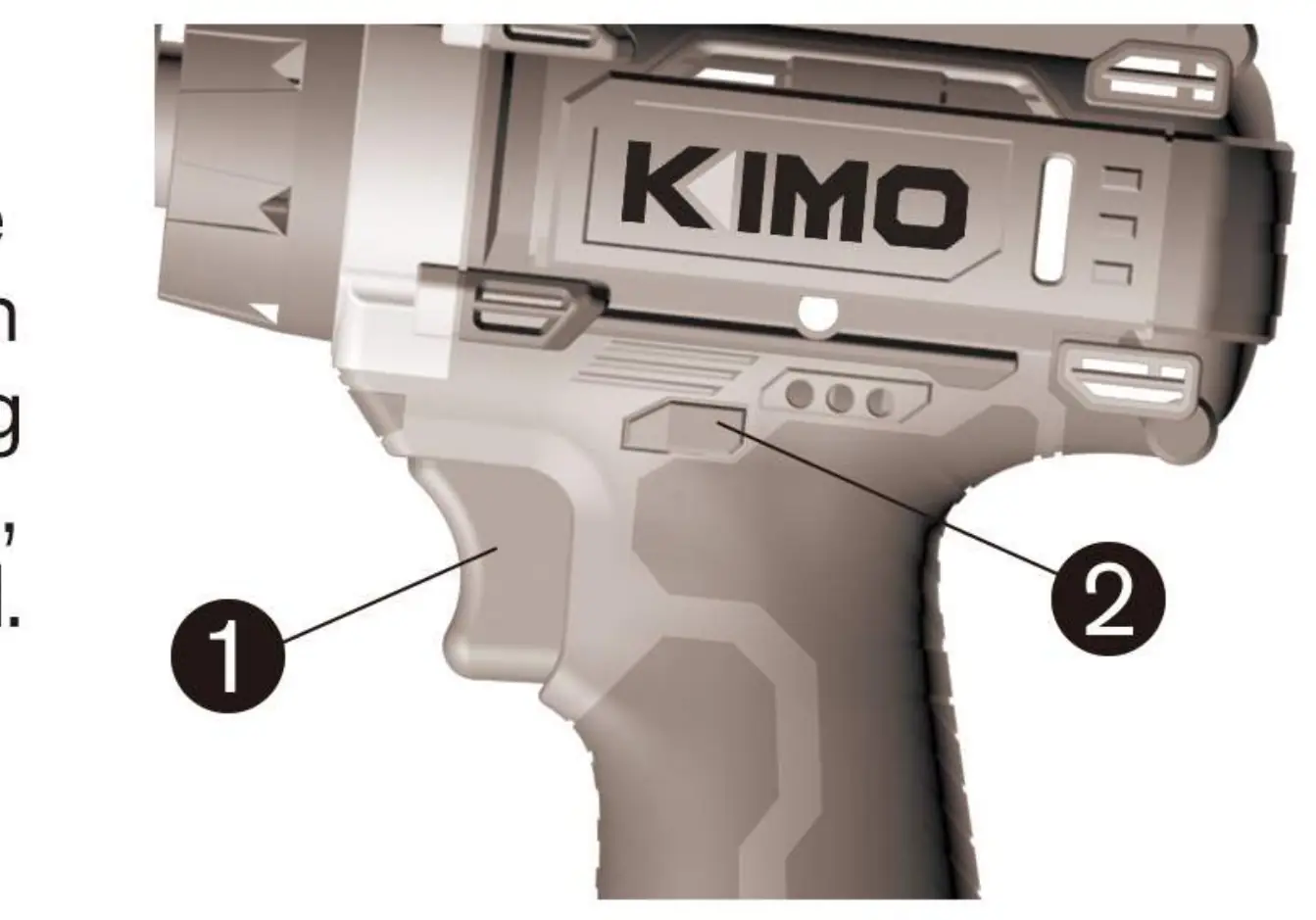

- Forward/Reverse Button: Sets rotation direction and locks the trigger.
- Torque Adjustment Collar: Adjusts the clutch setting for fastening.
- Keyless Chuck: Allows for tool-free bit changes.
- Fuel Gauge: Indicates remaining battery capacity via LED lights.
Model compatibility
- Use only KIMO-recommended accessories.
- Designed for use with KIMO 12V Max battery packs.
- Intended for use in the U.S. market.
