This document provides installation instructions for Kodlin K55125 Solid Riser Bushings. These bushings are designed to provide a raised surface to prevent large diameter riser bases from contacting the top surface of the upper fork bracket. Installation requires mechanical knowledge; if you are not confident in your ability to perform these steps, consult a trained technician.
Installation procedure
- Remove the existing risers and handlebars as necessary to gain access to the riser bushings.
- Remove the existing riser bushings from the fork bracket.
- Install the new solid riser bushings. Note that the thicker bushing must be placed on the top and should stand 1/16 inch higher than the top surface of the fork bracket.
- Reinstall the risers and handlebars according to the motorcycle manufacturer's recommendations.
Important installation notes
- Thread locker: Use red thread locker on all riser threads.
- Torque specifications: Tighten riser nuts or bolts to 30–40 ft-lbs.
- Stud usage: If using riser studs, ensure they are threaded all the way into the risers.
- Bolt usage: If using bolts, they must thread into the risers at least 1 inch, with a minimum of 1/2 inch required.
Maintenance and safety
Periodic maintenance and inspection are required to ensure all fasteners remain tight before operating the motorcycle. Improper installation or lack of maintenance will void the warranty. Always follow the manufacturer's torque specifications for your specific motorcycle model.
Practical help
Common problems
Riser base hitting the fork bracket
Install the solid riser bushings to provide the necessary clearance.
Fasteners loosening over time
Perform periodic inspections and ensure all fasteners are tightened to manufacturer torque specs before every ride.
Before use
- Verify you have a factory service manual for your motorcycle model.
- Ensure you have red thread locker available.
- Check that you have the correct tools to remove existing risers and bushings.
- Confirm you are comfortable performing mechanical work on your motorcycle's steering components.
Specs in practice
- Torque: 30–40 ft-lbs
- The required tightening force for riser nuts or bolts.
- Bushing height: 1/16 inch
- The distance the thicker bushing should stand above the fork bracket surface.
- Bolt thread depth: 1 inch
- Recommended minimum thread engagement for bolts into the risers.
Images and diagrams

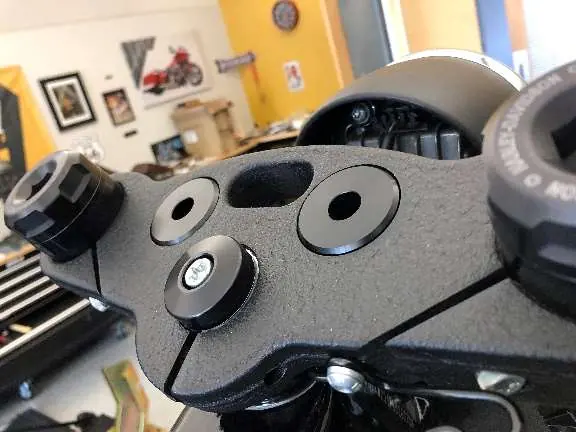

- The provided images show the installed solid riser bushings on the fork bracket, highlighting the clearance provided by the thicker bushing design.
Model compatibility
- Designed for use with specific motorcycle riser setups to prevent contact with the upper fork bracket.
