Leovince 15627T Spare Parts List
View the official spare parts list and exploded view diagram for the Leovince 15627T LV-14 Titanium slip-on exhaust. Identify components and part numbers for the Triumph Tiger 800 Sport.
Table of contents
Spare Parts Overview
This document provides an exploded view diagram and a comprehensive list of spare parts for the Leovince 15627T LV-14 Titanium slip-on exhaust, designed for the Triumph Tiger 800 Sport. Use this guide to identify specific components and their corresponding part numbers for maintenance, repair, or replacement.
Exploded View and Components

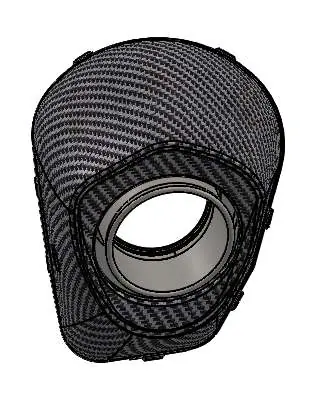

The diagram illustrates the assembly of the LV-14 Titanium slip-on. Key components identified include:
- Wool Repack kit: P/N 414205R
- Outer Sleeve kit: P/N 3015627011LR
- Titanium Muffler kit: P/N 3015627471R
- Carbon End Cap kit: P/N 3015604701R
- S.S. End Cap kit: P/N 3015604711R
- Belts and Rivets kit: P/N 0815604012R
- Short Spring kit: P/N 303949001R
- S.S. Pipe n°1525 kit: P/N 3015628202R
- S.S. Clamp Ø45 kit: P/N 300045536R
Assembly Kits
The following kits are essential for the installation and heat management of the exhaust system:
- Fitting kit: P/N 3015627601R (marked as A)
- Carbon Heat Shield kit: P/N 3015402001R (marked as B)
Manufacturer information
LeoVince
Practical help
Common problems
Identify the specific part using the exploded view and order the corresponding replacement kit by the P/N listed.
Verify the contents of the Fitting kit (P/N 3015627601R) or Carbon Heat Shield kit (P/N 3015402001R) against the diagram.
Before use
- Verify the exhaust model is 15627T.
- Confirm compatibility with Triumph Tiger 800 Sport.
- Ensure all components listed in the diagram are present before starting assembly.
- Check the integrity of the carbon end cap and sleeve.
