Installation and User Guide for Lindby 9949023 18W LED Outdoor Wall Light
Quick guide for the Lindby 9949023 18W LED outdoor wall light. Includes installation steps, wiring instructions, sensor settings, and maintenance information.
Quick answers from the manual
Quick answer
- The Lindby 9949023 is an 18W LED outdoor wall light with an IP65 rating. It requires professional installation and features a motion sensor with a 30°/150° detection angle and a maximum installation height of 6m. p. 1, 2
Key actions
- Mount the light on an outdoor wall. p. 2
- Connect the Live (L) and Neutral (N) wires. p. 2
First start
- Ensure power is off, mount the fixture, connect wires, and secure the cover. p. 2
Maintenance and reset
- LED and control gear are replaceable by a professional only. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| IP Rating | IP65 | Dust-tight and protected against water jets. | p. 1 |
| Detection Angle | 30°/150° | Sensor field of view. | p. 2 |
| Max Installation Height | 6m | Maximum height for sensor operation. | p. 2 |
Where to find it in the PDF
- Product Overview and Contents p. 1
- Installation and Sensor Settings p. 2
- Maintenance and Energy Efficiency p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Lindby 9949023 is an 18W LED outdoor wall light designed for stationary use. It features an IP65 rating, making it suitable for outdoor environments. Installation and maintenance should be performed by a professional.
Intended use
This product is intended for stationary use as a wall light in outdoor areas. It operates on a standard 230V ~ 50Hz power supply.
Installation
The installation process involves mounting the fixture to the wall and connecting the electrical wiring. Ensure the power is disconnected before starting.

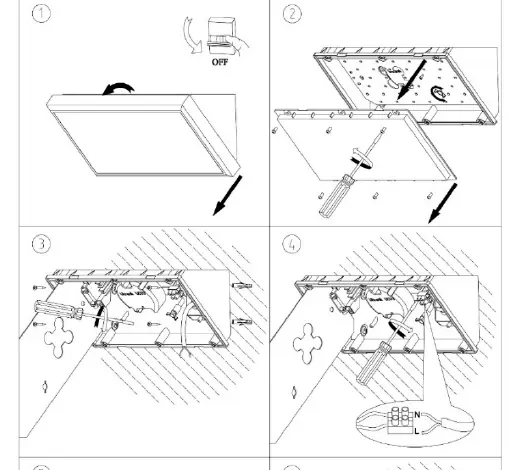

- Follow the step-by-step diagrams provided in the manual for physical mounting.
- Connect the Live conductor (L) and Neutral conductor (N) according to the wiring diagram.
- Ensure the fixture is securely attached to the wall.
Sensor settings
The integrated sensor has the following specifications:
- Detection angle: 30° / 150°
- Installation height: Maximum 6m
Maintenance
This product contains a light source of energy efficiency class E. The LED light source and the control gear are replaceable, but this must be performed by a professional. Do not attempt to replace these components yourself.
Practical help
Common problems
Verify that the power supply is active and that the Live (L) and Neutral (N) wires are correctly connected.
Ensure the installation height does not exceed 6m and that the area is within the 30°/150° detection angle.
Before use
- Ensure the power supply is disconnected before installation.
- Verify that the mounting surface is suitable for outdoor use.
- Check that all package contents (wall light, mounting hardware) are present.
- Confirm the installation location is within the sensor's detection range.
