Losi 22S Sprint Car Parts Diagram
Access the official exploded parts diagram for the Losi 22S Sprint Car. This guide provides detailed assembly views, part numbers, and shock specifications to assist with maintenance and repairs.
Quick answers from the manual
Quick answer
- This document is an exploded parts diagram for the Losi 22S Sprint Car, used for identifying components and assembly order during repairs. p. 1, 2, 3, 4
Key actions
- Identify parts for repair using the exploded view diagrams. p. 1, 2, 3, 4
- Assemble shocks using the specified oil weights and spring rates. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Front Shock Oil | 30wt | Recommended oil weight | p. 5 |
| Rear Shock Oil | 35wt | Recommended oil weight | p. 5 |
| Front Spring | 10LB | Spring rate | p. 5 |
| Rear Spring | 6LB | Spring rate | p. 5 |
Show 1 more answers Show less
Where to find it in the PDF

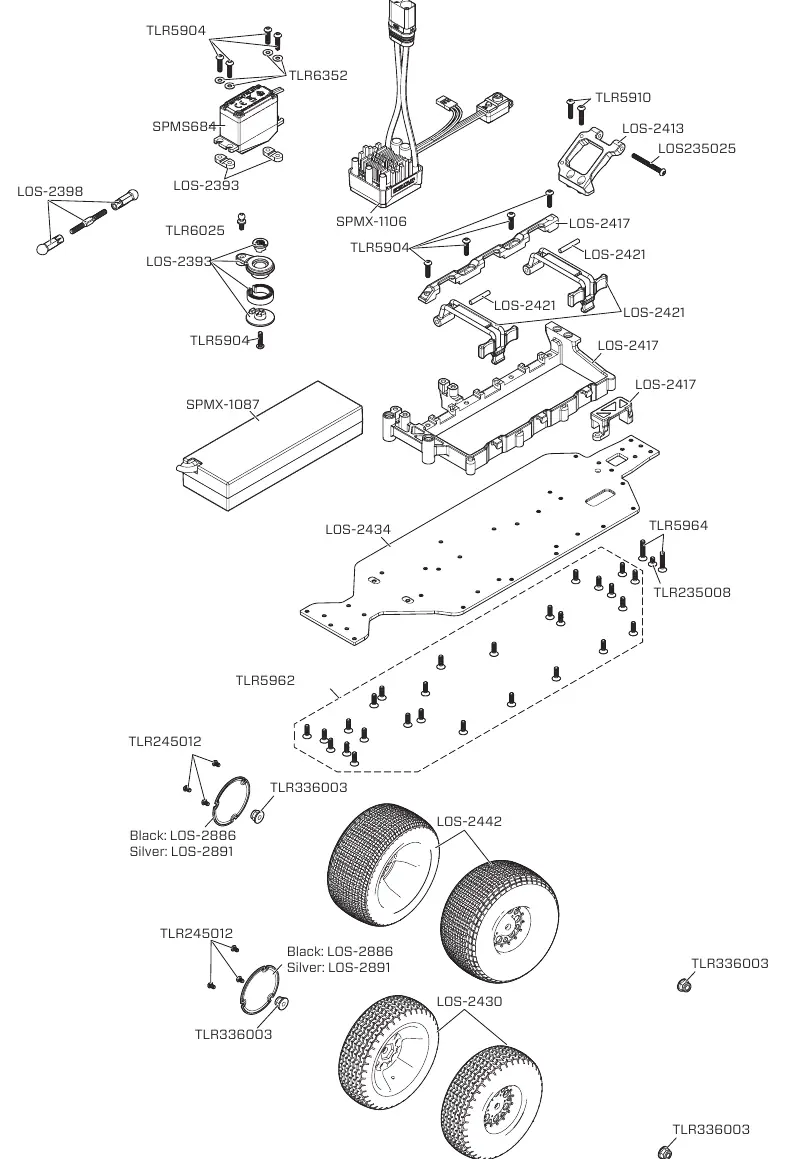

- Chassis and Drivetrain Assembly p. 1
- Suspension Assembly p. 2
- Body and Roll Cage Assembly p. 3
- Transmission and Motor Assembly p. 4
- Shock Assembly p. 5
Table of contents
Manual images
Click an image to enlargeParts Diagram and Assembly Guide
This document provides comprehensive exploded views of the Losi 22S Sprint Car. It is designed to assist owners and technicians in identifying components, understanding assembly order, and locating specific part numbers for maintenance and repair.
Using the Exploded Views
The diagrams illustrate the chassis, suspension, drivetrain, and body components. Each part is labeled with its corresponding part number (e.g., TLR or LOS prefixes). Use these diagrams to:
- Identify damaged or worn components for replacement.
- Understand the correct assembly sequence for suspension and drivetrain parts.
- Verify the correct hardware and fasteners required for specific sections of the vehicle.

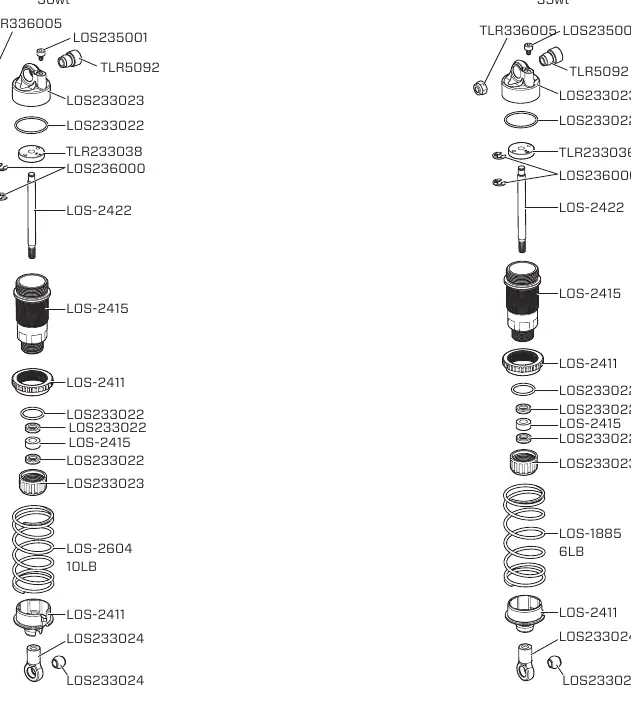

Shock Assembly Specifications
The document provides specific configuration details for the front and rear shock absorbers, which are critical for vehicle performance:
- Front Shocks: Use 30wt oil and 10LB springs.
- Rear Shocks: Use 35wt oil and 6LB springs.
Ensure you refer to the specific part numbers listed in the diagrams when ordering replacement parts to ensure compatibility with your Losi 22S Sprint Car.
Practical help
Before use
- Verify all screws and fasteners are tightened before operation.
- Check shock oil levels and ensure smooth movement.
- Compare damaged parts against the exploded view to ensure the correct replacement part number is ordered.
- Ensure all suspension components move freely without binding.
Specs in practice
- Front Shock Oil
- Recommended oil weight for front shock absorbers is 30wt.
- Rear Shock Oil
- Recommended oil weight for rear shock absorbers is 35wt.
- Front Spring
- Recommended spring rate for front shocks is 10LB.
