The Majorcom XS 100T VA is a compact power speaker designed for professional audio applications, including sports venues, exhibition halls, and stages. It is certified according to EN54-24 for voice alarm systems. The unit features an IP66 weatherproof rating, making it suitable for both indoor and outdoor installations.
Product description

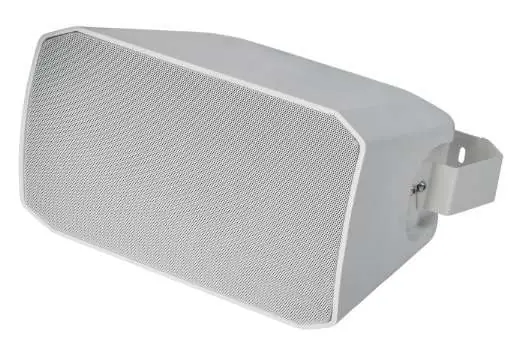

The speaker is built with an impact-resistant ABS housing and an aluminium grille. It utilizes a 2-way bass reflex system equipped with two 4-inch performance mid-bass woofers and a high-performance tweeter with waveguide technology. The unit is available in white.
Technical specifications
- Power: 25/50/100 W
- Impedance (100V): 100/200/400 Ohm or 1x4 Ohm (low-impedance)
- Bandwidth: 49-22,000 Hz
- SPL (Pmax/4m): 95.1 dB
- Sensitivity (1W/1m): 86.3 dB
- Dimensions: 341 x 245 x 192 mm
- Weight: 6.5 kg
- IP Rating: IP66
- Temperature range: -25 to +70 °C
- Connector: Screw terminal
- Maximum cable passage: 4 mm²
Installation and features
The loudspeaker includes a sturdy aluminium bracket for flexible mounting. A built-in tweeter switch provides a 4dB boost, allowing for sound correction in near-wall and near-ceiling installations. The speaker supports 4 different 100V power adjustments, and low-impedance operation is also supported.
Manufacturer information
MAJORCOM
Practical help
Common problems
Use the built-in tweeter switch to apply a 4dB boost for sound correction.
The unit is rated IP66, making it weatherproof for outdoor use, provided it is mounted correctly using the included bracket.
Before use
- Verify the 100V power setting (25/50/100W) matches your system requirements.
- Ensure the cable used for connection does not exceed the 4mm² maximum cable passage limit.
- Confirm the mounting surface is suitable for the included aluminium bracket.
- Check that the impedance setting (100/200/400 Ohm or 1x4 Ohm) is configured correctly for your amplifier.
