Mytee 12-inch Spinner T-Handle Parts List
Access the official parts list and exploded view diagram for the Mytee 12-inch Spinner T-Handle (Model 8904). Identify components, part numbers, and assembly structure for maintenance and repairs.
Table of contents
Quick guide from the manual
This document provides an exploded view diagram and a comprehensive parts list for the Mytee 12-inch Spinner T-Handle (Model 8904). Use this guide to identify specific components, part numbers, and quantities required for maintenance or repair.
Parts Identification

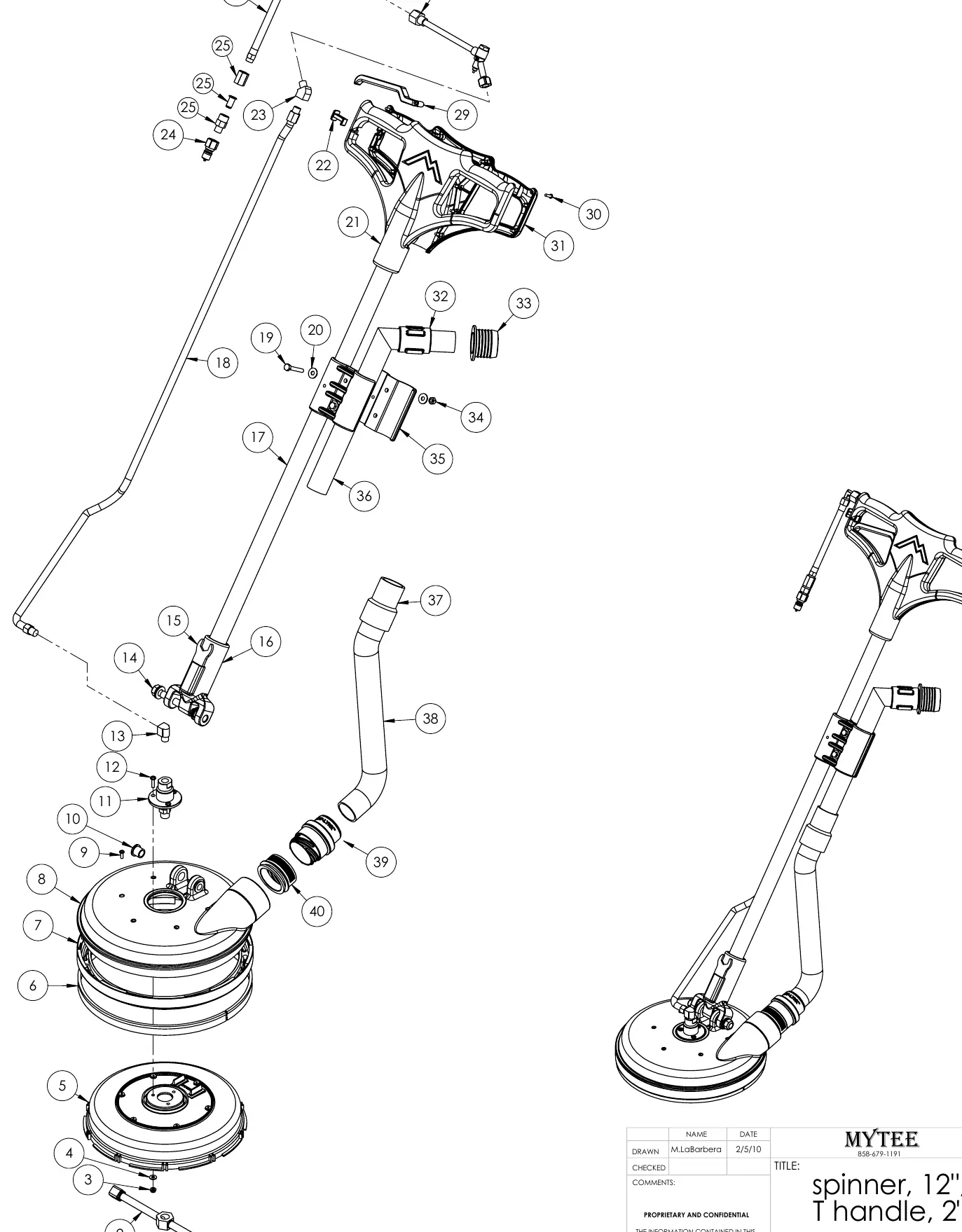

The diagram illustrates the assembly of the spinner tool, including the manifold, handle, vacuum tube, and hose connections. Each component is numbered and corresponds to the parts list provided. When ordering replacement parts, refer to the Item No. and Part No. columns to ensure accuracy.
Maintenance and Repairs
When performing maintenance, refer to the parts list to ensure you have the correct replacement components. Key parts include:
- Jets: H505A (s/s, 1/8", 1502)
- Spinner Manifold: P702A (top) and P702B (bottom)
- Vacuum Hose: PH627-20 (1.5" wire-reinforced)
- Trigger Assembly: P591 (trigger) and P638 (trigger lock)
Always verify the revision history on page 2 to ensure you are using the most current part numbers, as some components may have been updated or replaced over time.
Practical help
Common problems
Inspect and clean or replace jet (H505A).
Check vacuum hose (PH627-20) and cuff connections (H300, H145V) for leaks or blockages.
Inspect trigger (P591) and trigger lock (P638) for wear or damage.
Before use
- Verify all screws (H155, H256, H676) are tightened.
- Check that the quick disconnect (B101) is securely attached.
- Inspect the spinner ring (P500) and brush (G098) for wear.
- Ensure the high-pressure valve (B540) is functioning correctly.
