Installation Manual for Namron 17W Bathroom Fixture 3308460
Installation guide for the Namron 17W bathroom fixture with socket (model 3308460). Includes mounting steps, technical specifications, and safety requirements.
Quick answers from the manual
Quick answer
- This document is the installation manual for the Namron 17W bathroom fixture (model 3308460). It provides mounting instructions and technical specifications. Installation must be performed by a qualified electrician. p. 1
Key actions
- Mounting the fixture p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 17W | Power consumption | p. 1 |
| Voltage | 230V~, 50Hz | Operating voltage | p. 1 |
| Lumen | 1000lm | Brightness output | p. 1 |
| IP Rating | IP44 | Ingress protection rating | p. 1 |
Where to find it in the PDF
- Installation and Specifications p. 1
- Energy Efficiency Information p. 2
Table of contents
Important Information
This product must be installed by a qualified electrician. Ensure the power supply is 230V~ 50Hz before proceeding with installation. The fixture is rated IP44, making it suitable for bathroom environments.

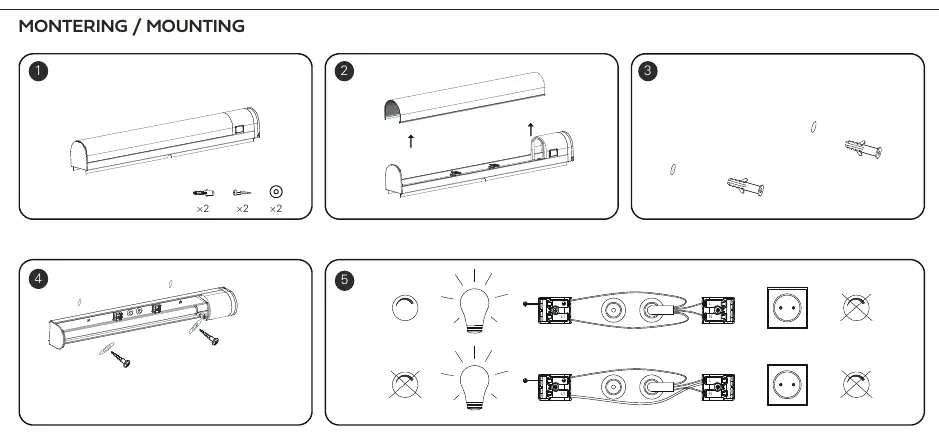

Mounting Instructions
- Remove the cover from the fixture.
- Prepare the mounting surface and drill holes according to the fixture's spacing.
- Insert wall plugs into the drilled holes.
- Secure the fixture base to the wall using the provided screws.
- Connect the electrical wiring.
- Reattach the cover to the fixture.
Technical Specifications
- Power: 17W
- Voltage: 230V~, 50Hz
- Lumen: 1000lm
- Color Temperature: 3000K
- IP Rating: IP44
- Beam Angle: 135 degrees
- Socket: 16A
- Lifetime: 50,000h L70
Dimensions
The fixture measures 586mm in length, 84mm in height, and 70mm in depth.
Manufacturer information
Namron AS
Practical help
Common problems
Installation failure
Installation must be performed by a qualified electrician. Ensure all local electrical codes are followed.
Before use
- Verify the power supply is 230V~ 50Hz.
- Ensure installation is performed by a qualified electrician.
- Check that the mounting surface is suitable for the fixture dimensions (586mm x 84mm x 70mm).
