Installation Manual for One Light 11105A1 Recessed Spotlight
Step-by-step installation guide for the One Light 11105A1 recessed spotlight. Includes cutout dimensions, bulb compatibility, and safety instructions for professional electricians.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The One Light 11105A1 is an adjustable recessed spotlight designed for indoor use. Installation must be performed by a professional electrician. Ensure the power supply is disconnected before starting the installation process.
Installation steps
Follow these steps to install the fixture:
- Prepare the ceiling: Cut a hole with a diameter of 72mm in the ceiling.
- Insert the fixture: Connect the wiring and insert the fixture into the cutout hole. Ensure the spring clips are secured.
- Install the bulb: Insert the compatible MR16 or GU10 bulb into the socket.
- Final check: Ensure the fixture is properly seated and the bulb is securely in place.
Technical specifications
- Voltage: 100-240V
- Max Power: 10W
- Bulb Type: MR16 / GU10
- Ingress Protection: IP20
- Material: Aluminium
- Cutout Diameter: 72mm
- Fixture Diameter: 84mm
- Depth: 120mm
Safety warnings
- Installation and maintenance must be carried out by a professional electrician.
- Ensure the product is installed properly before connecting to electricity.
- Do not cover the fitting.
Practical help
Before use
- Ensure power is disconnected before starting
- Verify cutout hole diameter is exactly 72mm
- Confirm bulb type is MR16 or GU10
- Ensure installation is performed by a professional electrician
Images and diagrams
- A: Cutout hole preparation (72mm)

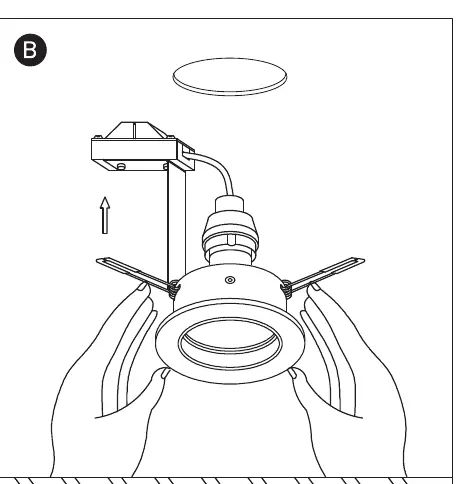

- B: Inserting the fixture into the ceiling
- C: Installing the MR16/GU10 bulb
- D: Final installed appearance
