Quick Installation Guide
The One Light 11107B Ecodownlight is a 7W LED fixture designed for recessed mounting. Installation must be performed by a professional electrician. Ensure the ceiling cutout is exactly 75mm in diameter before proceeding.
Installation Steps
- A: Prepare a 75mm diameter hole in the ceiling.
- B: Connect the included 300mA driver to the mains power supply.
- C: Insert the springs/clips into the ceiling opening.
- D: Secure the fixture into the ceiling cutout.
Technical Specifications
- Power: 7W
- Voltage: 230V
- Protection: IP20
- Driver: Included 300mA driver
- Cutout: 75mm
Safety Warnings
- Installation and maintenance must be carried out by a professional electrician.
- Ensure the product is installed properly before connecting to electricity.
- Do not cover the fitting.
Practical help
Before use
- Ensure the power supply is 230V.
- Verify the ceiling cutout diameter is 75mm.
- Ensure installation is performed by a professional electrician.
Images and diagrams

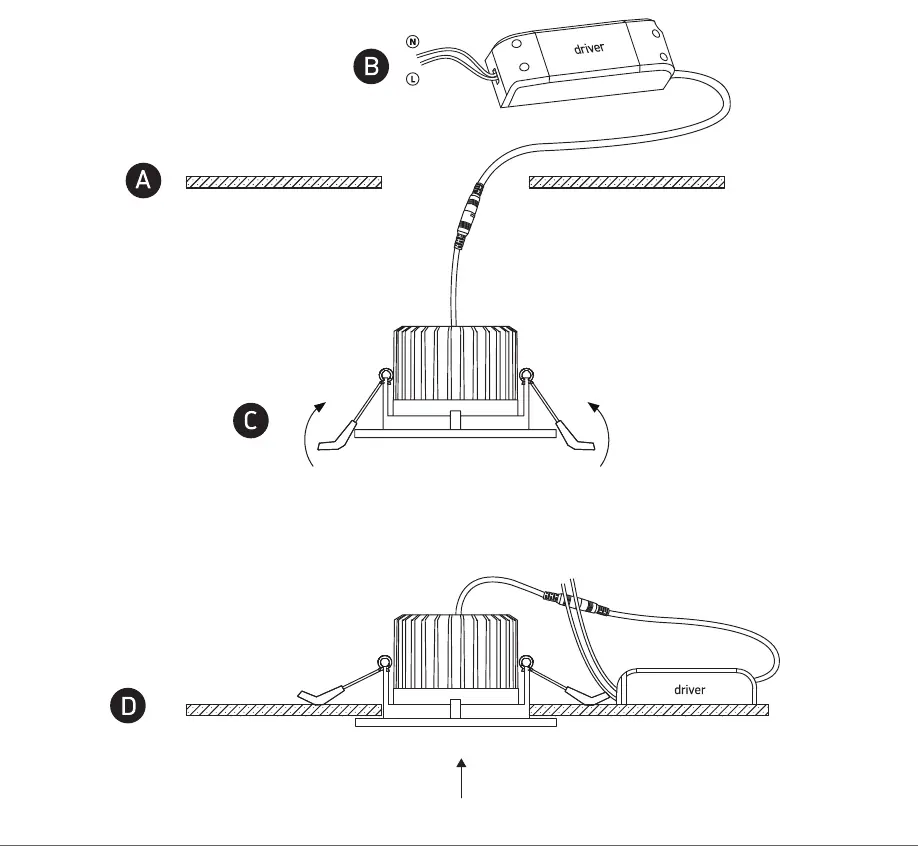

- The diagram illustrates the installation sequence: A (cutout), B (driver connection), C (spring insertion), and D (final mounting).
