Philips Brilliance CT 16-slice Configuration

Product Overview

The Philips Brilliance CT 16-slice configuration is a high-performance imaging system engineered for routine CT studies, CTA, and advanced motion-sensitive applications such as pulmonary and colonography studies. The system features fast reconstruction capabilities and automated tools to streamline patient setup and scan management, ultimately increasing throughput while maintaining high image quality.

Clinical Applications and Features

The system is available in two configurations: a 5.0 MHU X-ray tube with a 48 kW generator or an 8.0 MHU X-ray tube with a 60 kW generator. Key features include:

• DoseWise: A comprehensive approach to radiation dose management, including automatic current selection and dynamic dose modulation.
• RapidView Reconstruction: Delivers high-speed image reconstruction for faster throughput.
• Advanced Imaging: Supports specialized modes like Dynamic Focal Spot (DFS) for improved spatial resolution and sub-second rotation times to reduce motion artifacts.
• Clinical Enhancements: Includes tools like Bolus Tracking, Spiral Auto Start, and various pulmonary and cardiac toolkits for specialized diagnostic needs.

User Environment and Networking

The Brilliance CT environment is scalable, offering the Brilliance Workspace at the scanner console, the Extended Brilliance Workspace for dedicated PCs, and the Brilliance Workspace Portal for remote access to large datasets. The system fully supports DICOM 3.0 standards, ensuring seamless connectivity with hospital networks, workstations, and printers.

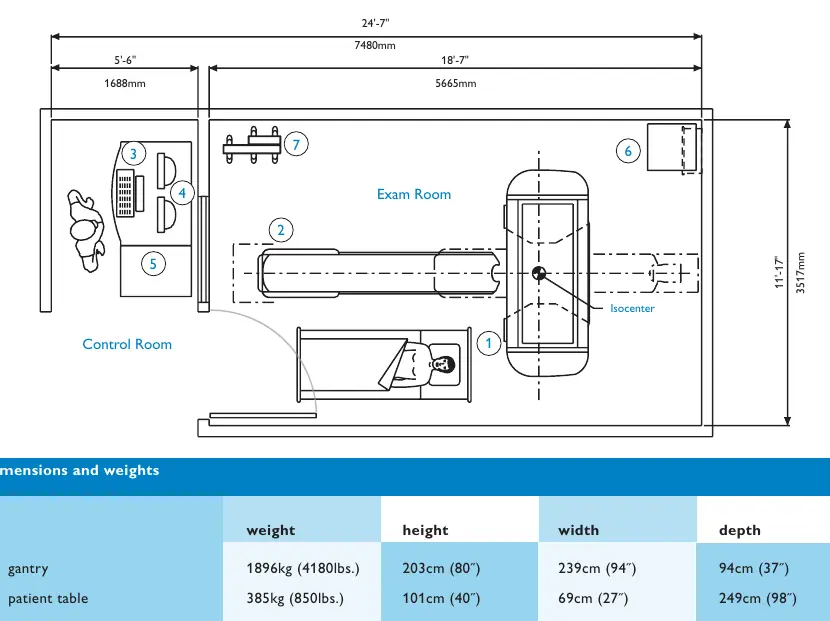

Safety and Site Planning

The system includes integrated safety features such as emergency stops on the gantry and console, and an intercom system for communication. Site planning requires a three-phase power distribution source and specific environmental controls for temperature and humidity to ensure optimal performance. The patient table supports up to 450 lbs (650 lbs with optional bariatric support) and features a floating tabletop for easy positioning.
