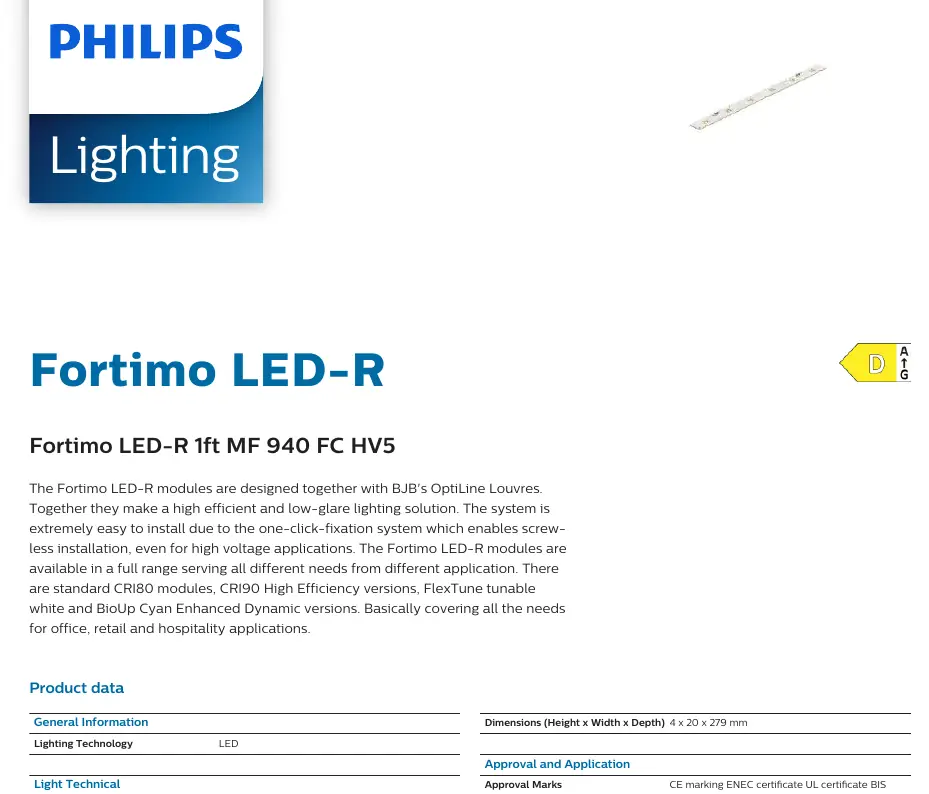

Datasheet for Philips Fortimo LED-R 1ft MF 940 FC HV5
Technical specifications and product data for the Philips Fortimo LED-R 1ft MF 940 FC HV5 LED module, including dimensions, lighting performance, and installation features.
Table of contents
Quick Guide from the Manual
The Philips Fortimo LED-R 1ft MF 940 FC HV5 is a high-efficiency LED module designed for professional lighting environments, including office, retail, and hospitality settings. It features a screwless one-click-fixation system for easy installation.
Product Overview
This module is designed to work in conjunction with BJB OptiLine Louvres to provide a low-glare lighting solution. It is suitable for high-voltage applications.
Technical Specifications
- Luminous Flux: 166 lm
- Luminous Efficacy: 166 lm/W
- Color Temperature: 4000 K
- Color Rendering Index (CRI): 90
- Life to 70% Lumen Maintenance: 70,000 hours
- Dimensions: 4 x 20 x 279 mm
Installation and Compatibility
The system utilizes a one-click-fixation system, enabling screwless installation. It is specifically designed for integration with BJB OptiLine Louvres.
Approvals
The product complies with CE, ENEC, UL, and BIS certification standards.
Manufacturer information
Philips
Practical help
Before use
- Verify compatibility with BJB OptiLine Louvres
- Ensure power supply matches high voltage requirements
- Check dimensions (4 x 20 x 279 mm) for fixture fitment
Specs in practice
- Luminous Flux
- Total light output of 166 lumens
- T-Case Maximum
- Maximum temperature of 85°C at the case for safe operation
