Proaim Heavy-Duty 150mm Camera Tripod Stand with Spreader (P-CST-150)

Product Overview

The Proaim Heavy-Duty 150mm Camera Tripod Stand with Spreader (P-CST-150) is a robust support system designed for professional videography. It provides exceptional stability for heavy camera setups, ensuring smooth and secure operation during filming.

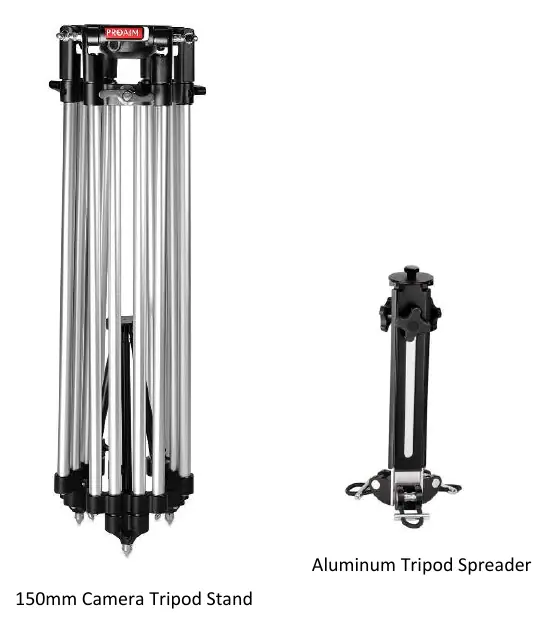

What is in the Box

• 150mm Camera Tripod Stand
• Aluminum Tripod Spreader

Setup Instructions

Aluminum Tripod Spreader Setup: Begin by placing the aluminum tripod spreader on a flat surface. Open the legs to your desired width and secure them firmly using the provided knobs.

Tripod Assembly: Place the 150mm camera tripod stand onto the spreader and secure it using the provided knob. Lock the tripod stand in place using the integrated rubber grips. To adjust the height, loosen all three adjustment knobs, raise or lower the tripod to your preferred height, and tighten the knobs securely.

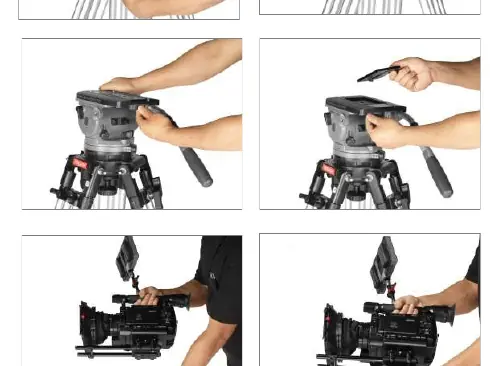

Mounting Equipment: Mount your fluid head (not included) onto the tripod stand and tighten the locking knob to secure it firmly. To attach your camera, press the red locking lever on the fluid head to unlock it, then release the yellow locking lever to remove the top plate. Attach the top plate to your camera by aligning the threads and securing it with a screwdriver. Finally, mount the camera onto the fluid head and lock it securely in place.

Maintenance and Safety

To ensure the longevity of your equipment, handle the tripod with care and avoid exposure to harsh environments. Regularly inspect all knobs and locking mechanisms to ensure they are functioning correctly. Do not exceed the weight capacity of the tripod. If you encounter any issues with the stability or locking mechanisms, check that all knobs are tightened properly and that the spreader is fully extended on a level surface.

Warranty and Support

Proaim offers a one-year warranty from the date of purchase, covering labor and parts for repairs. The warranty does not cover transportation costs, misuse, accidental damage, or neglect. Liability is limited to the product itself; the company is not responsible for damage caused by third-party accessories or improper handling. For any dissatisfaction or support needs, please contact the manufacturer directly.
