Click an image to enlargeQuick Guide for FilterWall Installation
This document provides the technical specifications and installation requirements for the Puretec FilterWall system when mounted into a 110mm rendered brick wall. Ensure all installations comply with relevant Australian building standards.
Wall Cutout and Preparation
Proper wall preparation is critical for the installation of the FilterWall housing. Ensure the following dimensions are met:
- Wall Opening Width: 605mm
- Wall Opening Height: 784mm
- Suggested Height from Floor: 764mm
- Stud Spacing: 600mm (centers)
Installation Details
The installation requires specific hardware and sealing techniques to ensure structural integrity and proper fit:
- Brick Ties: Use 4x medium-duty brick ties, pop-riveted to the housing.
- Mounting Angle: When mounted to the housing, brick ties must be set at a 4-degree angle.
- Sealing: Apply sealant around the perimeter of the FilterWall housing.
- Additional Components: Packing shims and PEX or Copper tubing are required for installation but are not supplied with the unit.

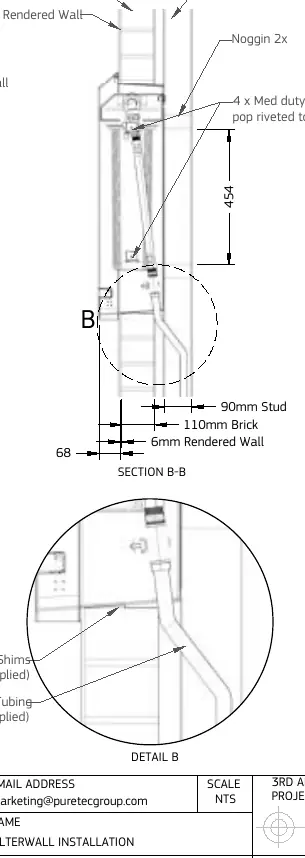

Technical Specifications
The system is designed for a wall composition consisting of:
- 90mm Stud
- 110mm Brick
- 6mm Rendered Wall
For technical support or inquiries, contact Puretec at [email protected].
Practical help
Common problems
Ensure the wall opening is exactly 605mm wide by 784mm high to fit the housing correctly.
Ensure brick ties are mounted to the housing at a 4-degree angle as specified in the diagram.
Before use
- Verify wall structure consists of 110mm brick and 90mm studs.
- Confirm stud spacing is 600mm (centers).
- Ensure compliance with Australian building standards.
- Prepare wall opening of 605mm x 784mm.
- Obtain necessary packing shims and PEX/Copper tubing (not supplied).
