Installation Guide for QuickBOLT 17672SS 7" QB1

Step-by-step installation guide for the QuickBOLT 17672SS 7" QB1 roof mount. Includes required tools, sealant application, and torque specifications for asphalt, EPDM, and TPO roofs.

Quick answers from the manual

Quick answer

  • The QuickBOLT 17672SS is installed by locating the rafter, drilling a 3/16" hole, sealing it, and securing the mount with a minimum torque of 125 lbs/inch. p. 2

Key actions

  • Locate the rafter and predrill the hole with a 3/16" bit. p. 2
  • Apply sealant to the hole and the bottom of the Microflashing washer. p. 2
  • Drive the bolt until the Microflashing is compressed (min 125 lbs/inch). p. 2

Technical specifications

Parameter Value Meaning Pages
Minimum Torque 125 lbs/inch Required for proper Microflashing compression. p. 2

Where to find it in the PDF

  • Title Page p. 1
  • Installation Instructions p. 2
Table of contents

Quick guide from the manual

This document provides installation instructions for the QuickBOLT 17672SS 7" QB1 mount, designed for use on asphalt, EPDM, and TPO roofs. The most critical requirement for a proper installation is ensuring the Microflashing washer is compressed correctly using a minimum torque of 125 lbs/inch.

  • Rafter locator
  • Chalk or a crayon
  • Drill with a 3/16" drill bit
  • MFG approved sealant
  • M6 deep socket hex driver
  • 1/2" wrench

Installation instructions

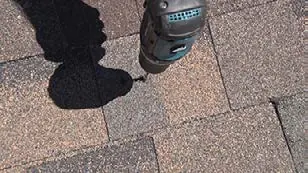

Step 1: Locate the rafter and predrill the hole.
Step 1: Locate the rafter and predrill the hole.
  1. Locate and drill: Use a rafter locator to find the rafter and predrill the hole using a 3/16" drill bit.
  2. Seal the hole: Fill the predrilled hole with MFG approved sealant.
  3. Prepare the washer: Place a ring of sealant around the bottom of the Microflashing washer.
  4. Install and compress: Place the Microflashing and drive the bolt until it compresses. Ensure a minimum torque of 125 lbs/inch is applied.
  5. Attach L-Foot: Insert the first nut and place the L-Foot.
  6. Secure: Insert the second nut and tighten until secure.

Practical help

Before use

  • Rafter locator
  • Chalk or a crayon
  • Drill with a 3/16" drill bit
  • MFG approved sealant
  • M6 deep socket hex driver

Images and diagrams

  • The installation process involves locating the rafter, drilling, applying sealant to the hole and washer, driving the bolt, and securing the L-Foot with nuts.
