Installation Instructions for QuickBOLT 17680SS 8" Multi Roof Mount

Quick guide for installing the QuickBOLT 17680SS 8" QB1 roof mount. Includes required materials, step-by-step installation procedure, and torque specifications for asphalt, EPDM, and TPO roofs.

Quick answers from the manual

Quick answer

  • The 17680SS is installed by locating the rafter, predrilling a 3/16" hole, applying sealant, and driving the bolt until the Microflashing washer is compressed (min 125 lbs/inch torque). p. 2

Key actions

  • Drill a 3/16" hole into the rafter. p. 2
  • Apply sealant to the predrilled hole and the bottom of the Microflashing washer. p. 2
  • Tighten the assembly to a minimum of 125 lbs/inch. p. 2

Problems and fixes

Microflashing washer not compressing

Ensure the bolt is driven properly and the assembly is tightened to a minimum of 125 lbs/inch.

p. 2

Technical specifications

Parameter Value Meaning Pages
Minimum Torque 125 lbs/inch Required to properly compress the Microflashing washer. p. 2

Where to find it in the PDF

  • Title Page p. 1
  • Installation Instructions p. 2
Table of contents

Quick guide from the manual

This document provides the installation procedure for the QuickBOLT 17680SS 8" QB1 mount, designed for use on asphalt, EPDM, and TPO roofs. Proper installation requires specific tools and adherence to a minimum torque specification to ensure the Microflashing washer is correctly compressed.

  • Rafter locator
  • Chalk or a crayon
  • Drill with a 3/16" drill bit
  • MFG approved sealant
  • M6 deep socket hex driver
  • 1/2" wrench

Installation instructions

  1. Locate the rafter and predrill the hole.
  2. Fill the predrilled hole with MFG approved sealant.
  3. Place a ring of sealant around the bottom of the Microflashing washer.
  4. Place the Microflashing and drive the bolt until it compresses.
  5. Insert the first nut and place the L-Foot.
  6. Insert the second nut and tighten until secure.

Important: To compress the Microflashing properly, use a minimum torque of 125 lbs/inch.

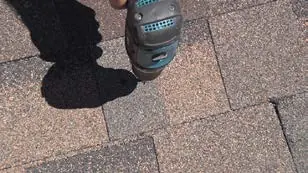

Drilling the rafter
Drilling the rafter

Practical help

Common problems

Microflashing washer not compressing

Ensure the bolt is driven properly and the assembly is tightened to a minimum of 125 lbs/inch.

Before use

  • Locate the rafter using a rafter locator
  • Mark the spot with chalk or a crayon
  • Prepare a drill with a 3/16" drill bit
  • Obtain MFG approved sealant
  • Have an M6 deep socket hex driver ready
  • Have a 1/2" wrench ready
