Installation Guide for QuickBOLT 17724SS Roof Mount Kit

Quick guide for installing the QuickBOLT 17724SS roof mount kit on asphalt shingle roofs. Includes recommended tools, step-by-step installation instructions, and torque requirements.

Quick answers from the manual

Quick answer

  • The QuickBOLT 17724SS is designed for mounting on asphalt shingle roofs. Installation requires locating the rafter, pre-drilling, applying sealant, and securing the mount with a minimum torque of 125 lbs/inch. p. 2

Key actions

  • Install the mount p. 2

Problems and fixes

Improper compression of Microflashing

Ensure minimum torque of 125 lbs/inch is applied.

p. 2

Technical specifications

Parameter Value Meaning Pages
Minimum Torque 125 lbs/inch Required to compress Microflashing properly p. 2

Where to find it in the PDF

  • Cover Page p. 1
  • Installation Instructions p. 2
Table of contents

Quick guide from the manual

This document provides installation instructions for the QuickBOLT 17724SS, designed for use on asphalt shingle roofs. Proper installation requires specific tools and adherence to torque specifications to ensure the Microflashing washer is correctly compressed.

  • Rafter locator
  • Chalk or a crayon
  • Drill with a 3/16” drill bit
  • MFG approved sealant
  • M6 deep socket hex driver
  • 1/2” wrench

Installation Instructions

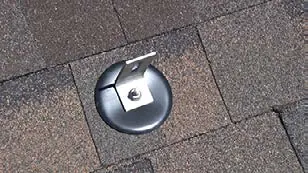

Step 1: Locate the rafter and predrill the hole
Step 1: Locate the rafter and predrill the hole
  1. Locate and Drill: Use a rafter locator to find the rafter and predrill the hole.
  2. Seal: Fill the predrilled hole with MFG approved sealant.
  3. Prepare Washer: Place a ring of sealant around the bottom of the Microflashing washer.
  4. Install Bolt: Place the Microflashing and drive the bolt until it compresses. Note: Use a minimum torque of 125 lbs/inch to compress the Microflashing properly.
  5. Attach L-Foot: Insert the L-Foot.
  6. Secure: Insert the nut and tighten until secure.

Practical help

Common problems

Microflashing not properly compressed

Ensure the bolt is driven until the Microflashing washer is compressed; use a minimum torque of 125 lbs/inch.

Before use

  • Rafter locator
  • Chalk or crayon
  • Drill with 3/16” bit
  • MFG approved sealant
  • M6 deep socket hex driver
