Installation Instructions for QuickBOLT 17713SS Flashed L-Foot
A complete installation guide for the QuickBOLT 17713SS Flashed L-Foot for asphalt shingle roofs. Includes required materials and step-by-step mounting instructions.
Quick answers from the manual
Quick answer
- The QuickBOLT 17713SS is a flashed L-foot mount designed for securing solar or other equipment to asphalt shingle roofs. p. 1
Key actions
- Locate and mark the rafter p. 2
- Predrill the hole p. 2
- Apply sealant and secure the L-Foot p. 2
- Insert flashing p. 2
Where to find it in the PDF
- Installation Instructions p. 2
Table of contents
Quick guide from the manual
This document provides installation instructions for the QuickBOLT 17713SS Flashed L-Foot, specifically designed for use on asphalt shingle roofs. Ensure you have all required tools before beginning the installation process.
Recommended materials
- Rafter locator
- Chalk or a crayon
- Drill with a 1/4” drill bit
- MFG approved sealant
- 1/2” Nut Setter
- Bar
Installation instructions

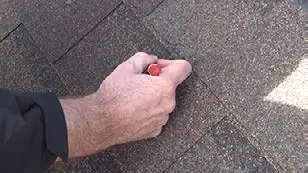

- Locate and mark the rafter: Use a rafter locator to find the rafter and mark it with chalk or a crayon.
- Predrill the hole: Drill the hole using a 1/4” drill bit.
- Fill the predrilled hole: Apply MFG approved sealant into the hole.
- Secure the L-Foot: Drive the screw until the L-Foot is secure using a 1/2” nut setter.
- Apply sealant: Lift the shingles and place sealant around the L-Foot.
- Insert flashing: Insert the flashing underneath the shingles.
Practical help
Before use
- Rafter locator
- Chalk or a crayon
- Drill with a 1/4” drill bit
- MFG approved sealant
- 1/2” Nut Setter
Images and diagrams
- The manual provides visual steps for locating the rafter, drilling, applying sealant, and inserting the flashing.
