Installation Guide for QuickBOLT 17717SS Flashed Split Top L-Foot

Quick guide for installing the QuickBOLT 17717SS Flashed Split Top L-Foot on asphalt shingle roofs. Includes recommended materials and step-by-step installation instructions.

Quick answers from the manual

Quick answer

  • The 17717SS Flashed Split Top L-Foot is installed by marking the rafter, pre-drilling, sealing, and securing the L-Foot, followed by inserting the flashing under the shingles. p. 2

Key actions

  • Locate and mark the rafter p. 2
  • Predrill the hole p. 2
  • Fill the predrilled hole with sealant p. 2
  • Drive the screw until the L-Foot is secure p. 2
  • Insert the Flashing underneath the shingles p. 2

Where to find it in the PDF

  • Installation Instructions p. 2
Table of contents

Quick guide from the manual

This document provides the installation procedure for the QuickBOLT 17717SS Flashed Split Top L-Foot, specifically designed for use on asphalt shingle roofs. Ensure all recommended materials are gathered before beginning the installation process.

  • Rafter locator
  • Chalk or a crayon
  • Drill with a 1/4" drill bit
  • MFG approved sealant
  • 1/2" Nut Setter
  • Bar

Installation instructions

Locating and marking the rafter

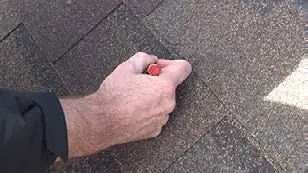

Locating and marking the rafter
  1. Locate and mark the rafter: Use a rafter locator to find the rafter and mark it with chalk or a crayon.
  2. Predrill the hole: Use a drill with a 1/4" bit to predrill the hole at the marked location.
  3. Fill the predrilled hole: Apply MFG approved sealant into the predrilled hole.
  4. Drive the screw: Use a 1/2" nut setter to drive the screw until the L-Foot is secure.
  5. Apply sealant: Lift the shingles and place sealant around the L-Foot.
  6. Insert the flashing: Insert the flashing underneath the shingles to complete the installation.

Practical help

Before use

  • Locate the rafter using a rafter locator
  • Mark the rafter with chalk or a crayon
  • Ensure you have a drill with a 1/4" bit
  • Obtain MFG approved sealant
  • Ensure you have a 1/2" nut setter
  • Have a bar available for lifting shingles

Images and diagrams

  • The installation process involves marking the rafter, drilling, sealing, and inserting the flashing under the shingles.
