RAVAK Freedom FM 080.XX Floor-Mounted Bathtub Tap

Product Overview

The RAVAK Freedom FM 080.XX is a premium floor-mounted bathtub tap designed for modern bathroom interiors. This elegant fixture provides a stable and functional water control solution for freestanding bathtubs.

Technical Specifications

The tap is designed to operate within the following parameters:

• Operating pressure: 0.1 - 0.5 MPa
• Water temperature: 5°C - 65°C

Installation

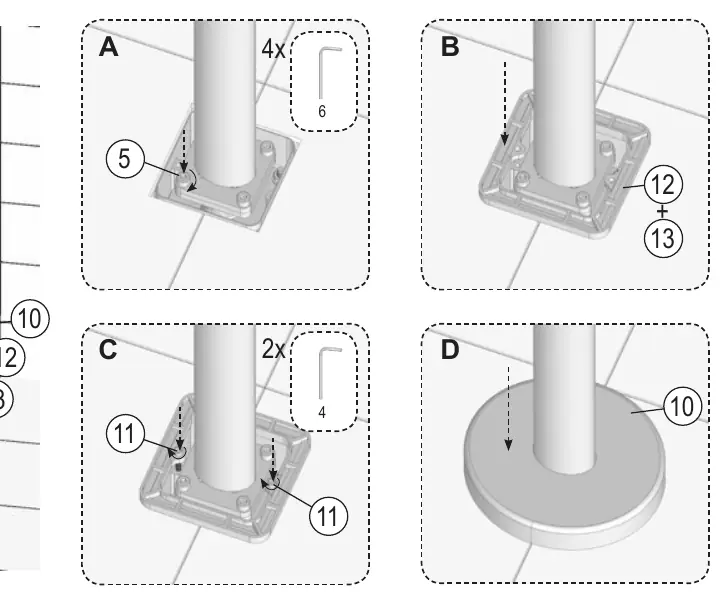

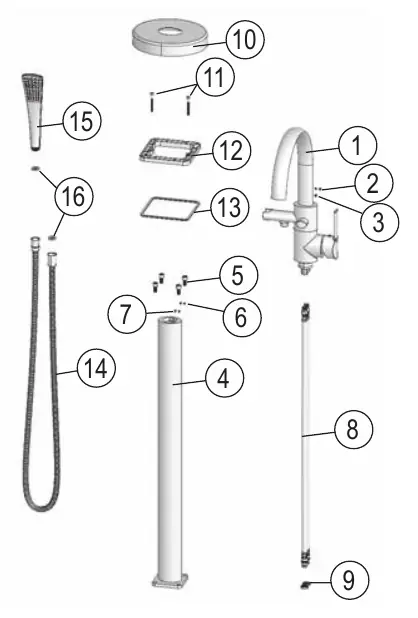

The installation process requires careful preparation of the floor and water supply lines. Ensure that the water supply is equipped with a filter to prevent debris from damaging the internal components. The assembly involves securing the base unit to the floor, connecting the hot and cold water supply lines, and mounting the main tap body. Use the provided hex keys (sizes 2.5, 3, 4, and 6) to secure all connections and decorative covers. Ensure all seals are correctly positioned to prevent leaks.

Operation

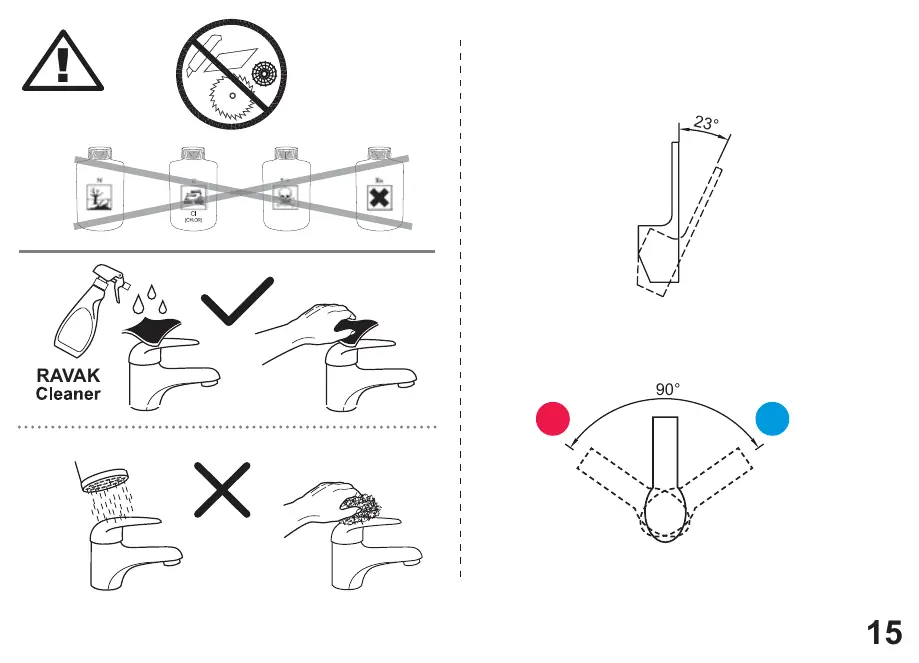

The tap features a single-lever control for adjusting both water flow and temperature. The lever moves 90 degrees horizontally for temperature control and 23 degrees vertically for flow regulation.

Maintenance and Care

To maintain the aesthetic appeal and functionality of the tap, follow these guidelines:

• Clean the surface regularly using only recommended cleaning agents like RAVAK Cleaner.
• Avoid using abrasive sponges, steel wool, or aggressive chemical cleaners containing chlorine or acids, as these can permanently damage the finish.
• Rinse the tap with clean water after cleaning and wipe dry with a soft cloth.

Troubleshooting and Disposal

If the water flow decreases, check the aerator and filter for mineral deposits or debris. If leaks occur, verify that all seals are intact and properly tightened. At the end of the product's service life, please dispose of the components in accordance with local environmental regulations, recycling metal and plastic parts where possible.
