RC-Factory Edge 540 V3 1000mm Specification Sheet
Technical specifications and equipment recommendations for the RC-Factory Edge 540 V3 1000mm RC airplane. Includes motor, battery, and servo requirements for 3D aerobatics.
Table of contents
Quick Overview

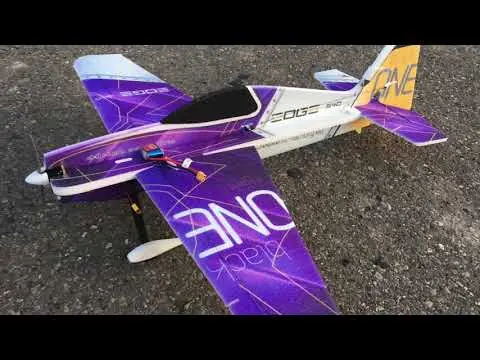

The RC-Factory Edge 540 V3 is a 1000mm wingspan EPP model designed for 3D aerobatics. This version features increased stiffness and torsion rigidity in the fuselage to eliminate twist during high-G maneuvers and fast rolling. The wing is also thickened to provide better tolerance for intense stunts.
Technical Specifications
- Wingspan: 1000 mm
- Length: 1020 mm
- Weight: Approximately 500g (varies based on installed equipment)
Recommended Equipment
- Motor: 2212 - 2217 size (150 - 200W)
- Servos: 4x 9 - 12g
- Receiver: Micro or mini size
- ESC: 18A / 2A minimum
- Battery: 3s 1000 - 1500 mAh
Practical help
Common problems
The final weight of the model (approx. 500g) depends heavily on the specific equipment installed. Ensure components are within the recommended weight range to maintain flight characteristics.
Before use
- Verify motor size is between 2212 and 2217.
- Ensure ESC is rated for at least 18A.
- Use a 3s LiPo battery between 1000 and 1500 mAh.
- Check that servos are in the 9-12g weight class.
- Ensure receiver is micro or mini size to fit the fuselage.
