Assembly and Parts Guide for Redcat 1/5TH 4WD Gasoline RC Truck

Comprehensive assembly and parts guide for the Redcat 1/5TH 4WD Gasoline RC Truck. Includes exploded diagrams, spare parts identification, and technical specifications.

Table of contents

Manual images

Click an image to enlarge
Differential gear assembly components Page 1 Front shock absorber exploded view Page 1 Fuel tank assembly Page 2

Quick guide from the manual

This document serves as a comprehensive parts list and assembly reference for the Redcat 1/5TH 4WD Gasoline Power R/C On-Road Truck. It provides exploded diagrams for major sub-assemblies, allowing for easier maintenance, repair, and part identification.

Technical Specifications

  • Length: 750mm
  • Width: 540mm
  • Height: 320mm
  • Wheelbase: 500mm
  • Ground Clearance: 40mm
  • Gear Ratio: 1:9.6
  • Engine: 26/30CC

Assembly and Exploded Views

The manual contains detailed exploded views for the following assemblies:

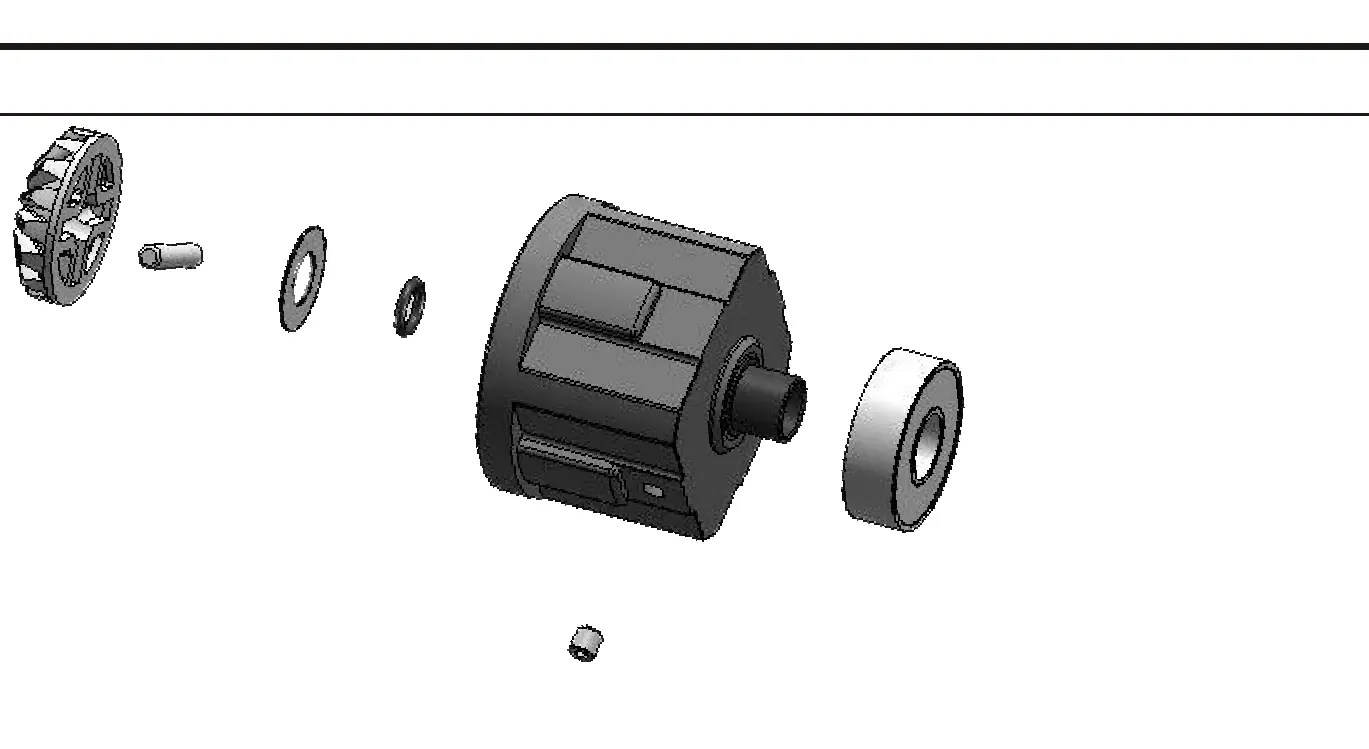

Differential gear assembly components
Differential gear assembly components

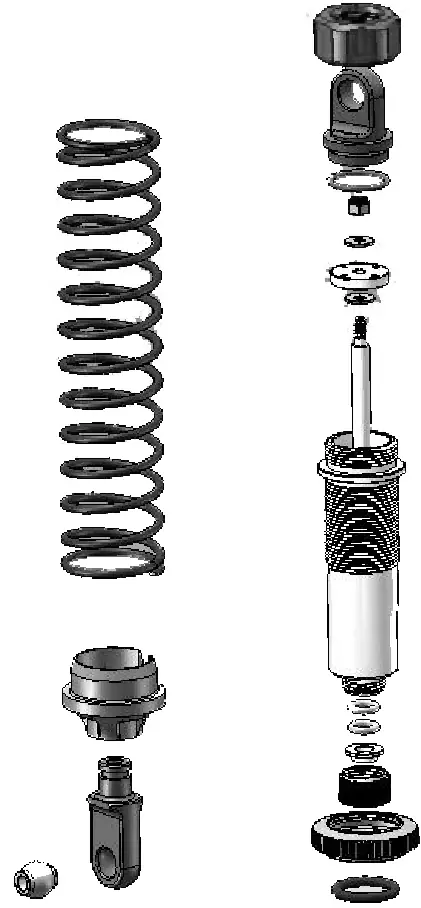

Front shock absorber exploded view
Front shock absorber exploded view

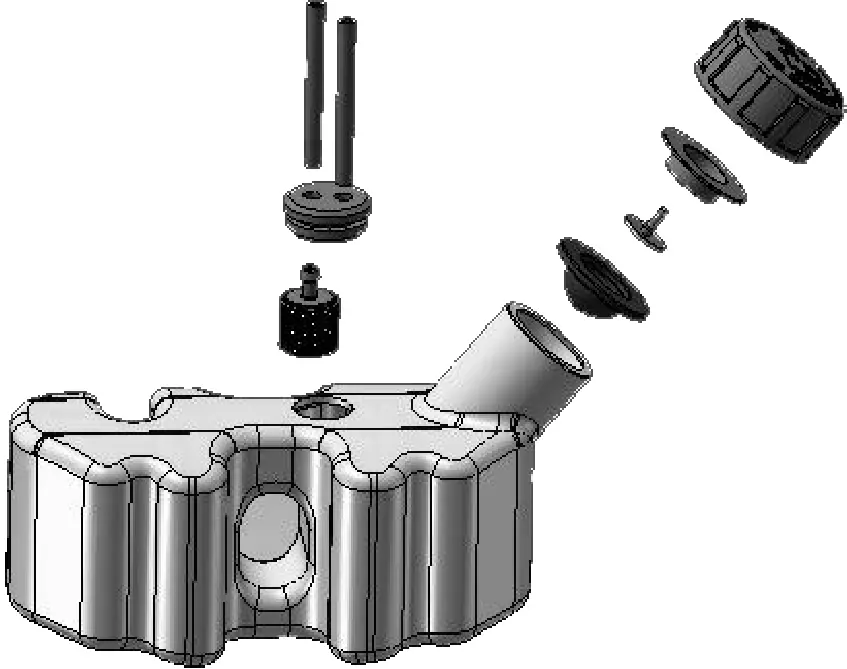

Fuel tank assembly
Fuel tank assembly
  • Differential: Includes the Diff. Box and Diff. Gear Assembly. Note: Always ensure the O-ring is installed correctly.
  • Suspension: Detailed views for Front and Rear Shock Absorbers.
  • Chassis Components: Includes Roll Cage, Fuel Tank, Steering, and Engine assemblies.

Spare Parts and Upgrades

The document lists numerous spare parts with specific codes (e.g., 50100-Cap Head Mechanical Screw, 07102-Front Shock Absorber). It also highlights 'Upgradable Optionals' such as aluminum servo horns, exhaust pipes, and engine covers, which can be used to enhance the performance or durability of the vehicle.

Practical help

Common problems

Differential assembly issues

Ensure the O-ring is correctly installed within the differential box assembly.

Shock absorber performance

Verify that all internal components, including the main axle, spring, and plastic parts, are assembled in the correct order as shown in the exploded view.

Before use

  • Verify all screws are tightened securely.
  • Check that the O-ring is installed in the differential.
  • Ensure all steering and throttle linkages move freely without binding.
  • Confirm the fuel tank is properly mounted and sealed.
  • Check that the air filter is clean and properly installed.
