User Manual for Regulus Ball Valve with Strainer
Quick guide for the Regulus ball valve with integrated strainer. Includes installation instructions, maintenance steps, technical specifications, and flow direction guidelines.
Table of contents
Quick Guide
The Regulus ball valve with an integrated strainer is designed for tight closure or opening of fluid flow while filtering impurities. It is suitable for use with drinking water, water, and antifreeze fluids in heating systems, heat pumps, and solar thermal systems.
Installation

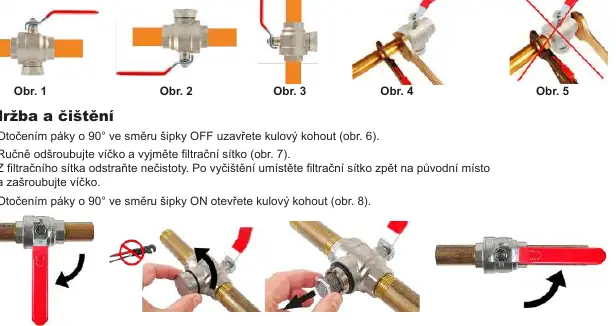

The valve can be installed in either a horizontal or vertical position. Always observe the following requirements:
- Flow Direction: Ensure the flow direction matches the arrow marked on the valve housing.
- Handling: Hold the ball valve on the side where you are connecting the pipe. Holding the valve on the opposite side is prohibited as it may damage the assembly.
Maintenance and Cleaning
To ensure proper operation, the integrated strainer should be cleaned periodically:
- Close the ball valve by turning the lever clockwise by 90°.
- Unscrew the lid manually and remove the strainer.
- Remove impurities from the strainer mesh.
- Return the clean strainer to its place and screw the lid back on.
- Open the ball valve by turning the lever counter-clockwise by 90°.
Technical Data
- Max. working pressure: 16 bar
- Max. working temperature: -20 °C to 100 °C
- Filter mesh size: 0.6 mm
Practical help
Common problems
Ensure the valve is installed correctly according to the flow direction arrow. Do not hold the valve on the opposite side during installation.
The integrated strainer may be clogged. Follow the maintenance steps to clean the filter mesh.
Before use
- Verify the flow direction arrow on the valve housing.
- Ensure the installation position is horizontal or vertical.
- Check that the pipe connection size matches the valve (3/4" to 2").
- Confirm the working fluid is compatible (water, antifreeze, etc.).
