Installation Instructions for Resistex Résiclic LED Module
Quick installation guide for the Resistex Résiclic LED module. Includes safety precautions, wiring steps, and color temperature adjustment instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Resistex Résiclic LED module. It is intended for professional installers. Ensure all safety protocols are followed during installation.
Safety notes
- Never work on the luminaire while it is under voltage.
- Installation must be performed by a professional installer in compliance with electrical standards.
- Risk of electrostatic discharge (ESD). Handle with precautions.
Installation steps
- Turn off the main power supply.

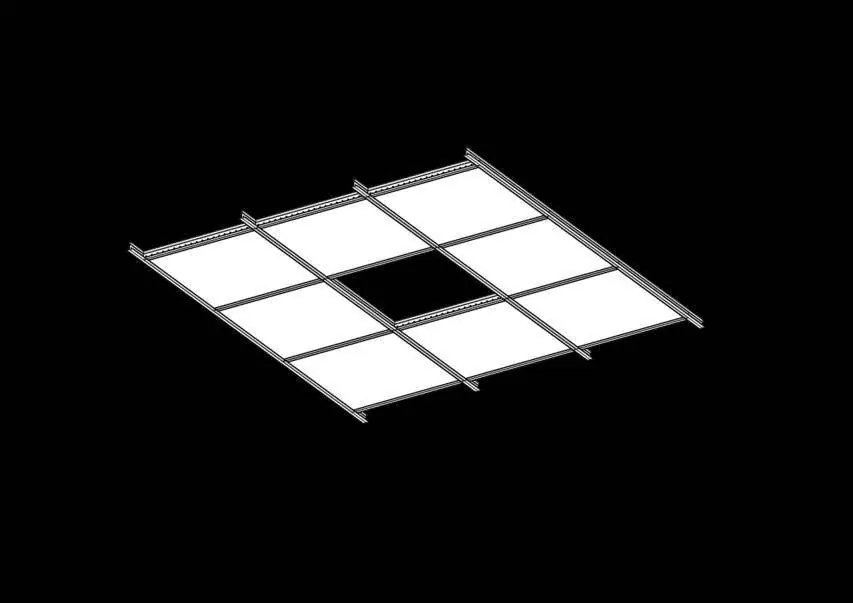

- Insert the LED modules into the ceiling grid.
- Connect the modules to each other using the provided connectors.
- Select the desired color temperature using the switch (WW, NW, CW).
- Connect the module to the power supply unit.
- Ensure all modules are securely placed in the grid.
- Connect the power supply to the mains (N and L terminals).
- Turn on the power.
Color temperature settings
The module features a switch to adjust the color temperature:
- WW: 4000K
- NW: 3500K
- CW: 3000K
Maintenance
Do not use chemicals or abrasive products to clean the fixture. Keep these instructions for future maintenance or dismantling.
Practical help
Common problems
Handle with precautions according to ESD norms.
Do not use chemicals or abrasive products to clean the fixture.
Before use
- Ensure power is turned off before starting
- Verify professional installer is performing the work
- Check for ESD precautions
- Confirm ceiling grid compatibility
