Installation Instructions for Resistex Miks 1071LM LED Downlight

Quick installation guide for the Resistex Miks 1071LM LED downlight. Includes step-by-step mounting instructions, wiring diagrams, and safety precautions.

Table of contents

Manual images

Click an image to enlarge
Miks fixture options and accessories Page 1 Installation steps 1-4 Page 2

Quick guide from the manual

This document provides essential installation and safety instructions for the Resistex Miks 1071LM LED downlight. It is intended for professional installers to ensure safe and correct operation of the lighting fixture.

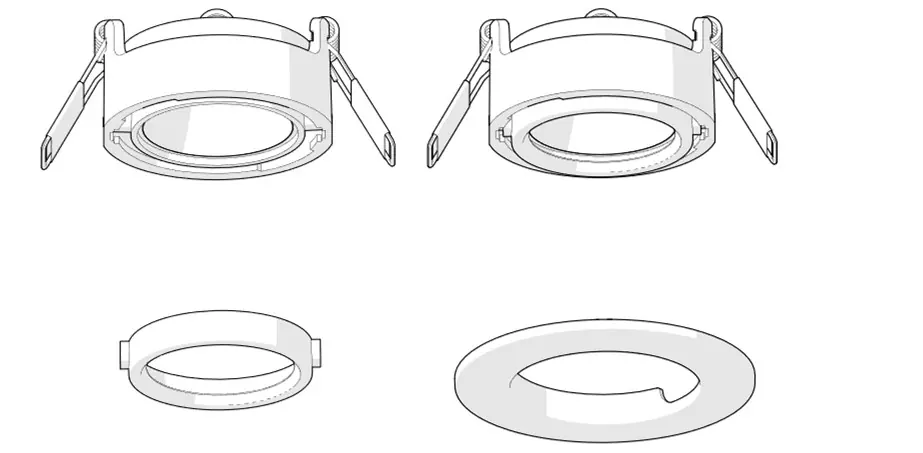

Miks fixture options and accessories
Miks fixture options and accessories

Safety notes

  • Never work when voltage is present on the luminaire.
  • The installation must be performed by a professional installer in compliance with electrical standards and regulations.
  • Risk of electrostatic discharges (ESD). Handle with precautions.
  • Please observe all notes and steps described in the mounting instructions.

Installation

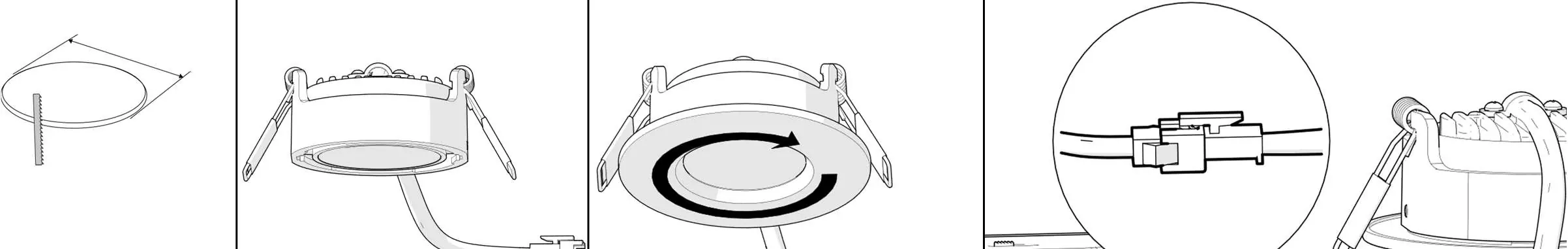

Installation steps 1-4
Installation steps 1-4
  1. Cut a hole in the ceiling with a diameter of 69mm (+/- 1mm).
  2. Insert the fixture into the ceiling opening.
  3. Rotate the fixture to lock it into position.
  4. Connect the power cable to the fixture connector.
  5. Open the terminal block housing.
  6. Connect the electrical wires to the L (Live) and N (Neutral) terminals.
  7. Close the terminal housing and secure the fixture in the ceiling.

Maintenance

Do not use chemicals or abrasive products to clean the fixture. Keep these instructions for dismantling or future maintenance. You can consult additional information about RESISTEX luminaires on the website www.resistex-sa.com.

Official resources from the manual

Official resource www.resistex-sa.com

Practical help

Common problems

Fixture does not fit in the ceiling

Ensure the ceiling cutout is exactly 69mm in diameter.

Electrical connection issues

Verify that the Live (L) and Neutral (N) wires are correctly inserted into the terminal block.

Before use

  • Ensure power is turned off at the main breaker before starting
  • Verify the ceiling hole diameter is 69mm
  • Ensure a professional installer is performing the work
  • Take ESD (electrostatic discharge) precautions during handling
