Installation Instructions for Resistex Omegaled LED Luminaire
A comprehensive installation guide for the Resistex Omegaled LED luminaire. Includes safety precautions, mounting steps, and wiring diagrams for professional installation.
Quick answers from the manual
Quick answer
- The Omegaled luminaire must be installed by a professional. Ensure power is off before starting and handle with ESD precautions. p. 1, 2
Key actions
- Turn off power before installation p. 1
- Mount the base and connect wiring p. 2
First start
- Ensure power is off, mount the base, connect wires, and attach the cover. p. 2
Show 3 more answers Show less
Problems and fixes
Handle with precautions.
p. 1Maintenance and reset
- Do not use chemicals or abrasives for cleaning. p. 1
Where to find it in the PDF
- Safety and Dimensions p. 1
- Installation Steps p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and safety instructions for the Resistex Omegaled LED luminaire. It is intended for professional installers to ensure safe and correct mounting and wiring. Always ensure the power is disconnected before performing any work on the fixture.
Safety Notes
- Never work on the luminaire while it is under voltage.
- Installation must be performed by a professional installer in compliance with electrical standards and regulations.
- The device is sensitive to electrostatic discharges (ESD). Handle with necessary precautions.
Installation
Follow these steps to install the luminaire:
- Ensure the power is switched off.
- Drill holes according to the dimensions provided in the manual.
- Mount the base of the luminaire to the surface.

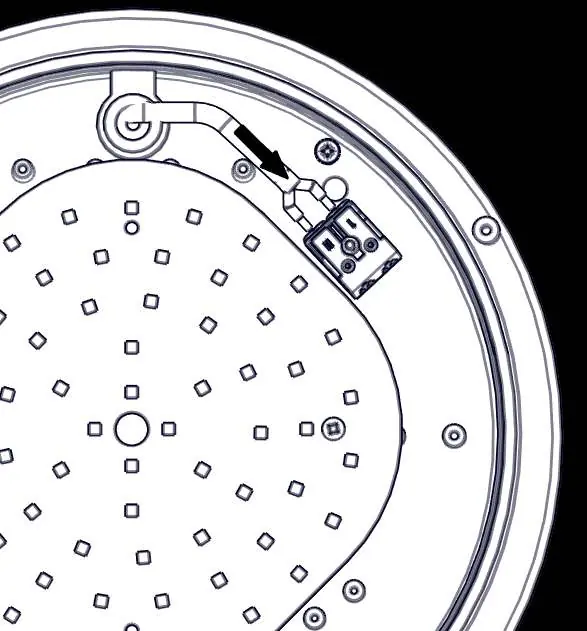

- Connect the wiring according to the specific model (ON/OFF or HF COR PIL).
- Secure the cover to the base.
Maintenance
Do not use chemicals or abrasive products to clean the fixture. Keep these instructions for future dismantling or maintenance. Additional information about Resistex luminaires can be found on their website at www.resistex-sa.com.
Official resources from the manual
Practical help
Common problems
Handle the luminaire with necessary ESD precautions during installation.
Installation must be performed by a professional installer in compliance with electrical regulations.
Before use
- Ensure power is disconnected
- Verify professional installer availability
- Check mounting surface suitability
- Review wiring diagram for your specific model (ON/OFF or HF)
Manual page author
Michael Turner
Technical manual editor
