Roberts 10-616-2A Conventional Carpet Trimmer Parts List
Access the official parts list and exploded view diagram for the Roberts 10-616-2A Conventional Carpet Trimmer. Identify replacement components, including blades, guides, and handles, to assist with maintenance and repair.
Table of contents
Important information from the manual
This document provides an official parts list and an exploded view diagram for the Roberts 10-616-2A Conventional Carpet Trimmer. It is intended to assist professional installers and users in identifying specific components required for maintenance, repair, or replacement.
Exploded view and parts identification

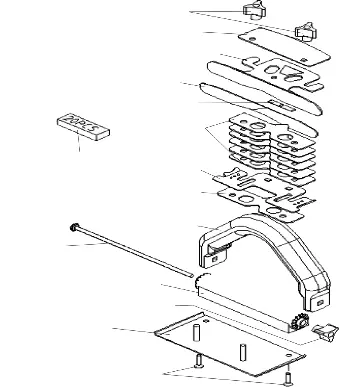

The exploded view diagram illustrates the assembly order of the trimmer components, from the base plate up to the knobs. Use this diagram to understand how the parts fit together during reassembly.
Replacement parts list
The following parts are available for the Roberts 10-616-2A. Please refer to these part numbers when ordering replacements:
- 10-616-01A: Raised Trim Delrin Guide (12-pack)
- 10-616-01: Flat Trim Delrin Guide (12-pack)
- 10-616-02: Handle Bolt
- 10-616-03: Knobs
- 10-616-04: Name Plate
- 10-615-05: Spacers (6-pack)
- 10-616-06: Black Spacer
- 10-616-07A: Blade Guide
- 10-615-08: Blade Clip and Rivet
- 10-615-09: Locking Plate
- 10-616-10: Trimmer Mount & Screws
- 10-616-11: Base Plate
- 10-616-12: Folding Handle
- 10-616-13: Blades
Manufacturer information
Roberts
Practical help
Common problems
Replace the blades using part number 10-616-13.
Check the Handle Bolt (10-616-02) and ensure the Folding Handle (10-616-12) is securely attached.
Before use
- Ensure all knobs (10-616-03) are tightened securely.
- Verify the blade is properly seated in the Blade Clip (10-615-08).
- Check that the Base Plate (10-616-11) is aligned correctly before operation.
