Roberts 10-482G Heat Bond Iron Parts List
View the official parts list and exploded diagram for the Roberts 10-482G Cool Shield™ Heat Bond Iron. Identify components for maintenance and repair.
Table of contents
Quick guide from the manual
This document provides an exploded view diagram and a comprehensive parts list for the Roberts 10-482G Cool Shield™ Heat Bond Iron. It is intended for identifying components during maintenance or repair. Always ensure the device is disconnected from the power source and fully cooled before performing any inspection or disassembly.

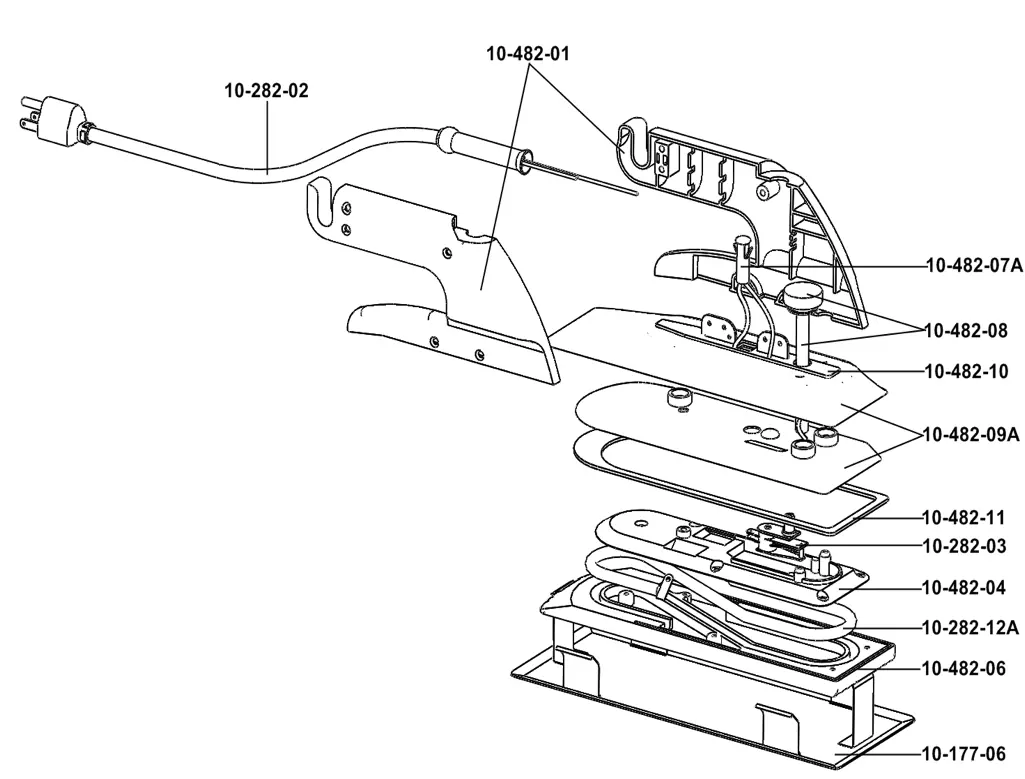

Exploded view and parts identification
The diagram illustrates the assembly of the iron, showing the relationship between the handle, heating element, sole plates, and internal wiring. Use this to locate specific parts by their reference numbers when ordering replacements.
Replacement parts list
- 10-482-01: Handle Set with Screws
- 10-282-02: Cord Set with Relief Spring
- 10-282-03A: Thermostat
- 10-482-04: Top Sole Plate with Screws
- 10-482-06: Bottom Sole Plate
- 10-482-07A: Internal Wire Set
- 10-482-08: Calibration Knob
- 10-482-09A: Heat Shield with Screws & Washer
- 10-482-10: Gasket (Top Handle Mount)
- 10-482-11: Gasket (Sole Plate/Shield)
- 10-282-12A: Heating Element
- 10-177-06: Iron Holder Tray
Support
For further assistance or to order parts, visit the official website at robertsconsolidated.com.
Official resources from the manual
Manufacturer information
Roberts
Practical help
Before use
- Verify the model number is 10-482G before ordering parts.
- Ensure the iron is unplugged and cool before attempting any disassembly or inspection.
- Use the exploded diagram to identify the correct part number before contacting support.
Images and diagrams
- The exploded view shows the vertical assembly order of the iron components.
- Part numbers correspond directly to the replacement parts list provided in the table.
