RS PRO 1000W Fixed Installation DC-AC Power Inverter
Quick guide for the RS PRO 1000W Fixed Installation DC-AC Power Inverter. Includes technical specifications, operating environment, and key features for 12V DC to 230V AC conversion.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides specifications and operational details for the RS PRO 1000W Fixed Installation DC-AC Power Inverter. The device is designed to convert 12V DC input to 230V AC output. It features an anodized aluminum case for heat dissipation and includes built-in protections against common electrical faults.
Product Description

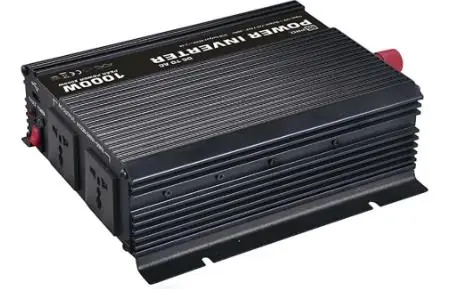

The inverter is a modified sine wave unit equipped with a universal UK/Euro output socket and a USB socket. It is designed for manual operation via an ON/OFF switch and includes two indicators to display working and failure states.
Key Features
- Universal UK/Euro output socket
- USB socket
- Low voltage alarm and shutdown
- Automatic reset after protection
- Soft start functionality
- Anodized aluminum case for durability and heat dissipation
Technical Specifications
- Input Voltage: 12V DC
- Output Voltage: 230V AC
- Rated Power: 1000W
- Surge Power: 2000W
- Waveform: Modified Sine Wave
- Frequency Range: 50Hz / 60Hz
Mechanical Specifications
- Housing Material: Anodized aluminum
- Dimensions: 270.4mm x 208mm x 77mm
- Weight: 2480g
Operating Environment
- Operating Temperature Range: 0°C to 40°C
Safety Protections
The inverter includes integrated protection systems for:
- Over voltage
- Overload
- Over temperature
- Short circuit
- Reverse polarity
- Low voltage alarm and shutdown
Manufacturer information
RS PRO
Practical help
Common problems
Check that the input battery voltage is stable at 12V DC.
Verify that the connected load does not exceed the 1000W rated power capacity and check for short circuits.
Ensure the inverter is installed in a well-ventilated area and the operating temperature is within the 0°C to 40°C range.
Before use
- Verify the input power source is 12V DC.
- Ensure the total power consumption of connected devices is within the 1000W rated limit.
- Check that the installation location allows for adequate ventilation.
- Confirm the ambient temperature is between 0°C and 40°C.
