Installation Manual for Sanela SLT 153P Built-in Self Closing Tap

Quick installation guide for the Sanela SLT 153P built-in self-closing tap for urinals. Includes mounting steps, technical requirements, and maintenance tips.

Table of contents

Manual images

Click an image to enlarge
Parts list and supplied equipment Page 1 Installation steps 1-4 Page 2 Water flow direction Page 3 Installation steps 5-9 Page 3

Quick guide from the manual

The Sanela SLT 153P is a built-in self-closing tap designed for urinals. Before installation, ensure the water supply pressure is between 0.1 and 0.5 MPa and the sieve dimension is ≤ 90 µm to prevent clogging. Proper installation requires a wall recess depth of 52-64 mm.

Supplied equipment

The package includes the main valve body, cover plate, and necessary seals. Verify all parts are present before beginning the installation process.

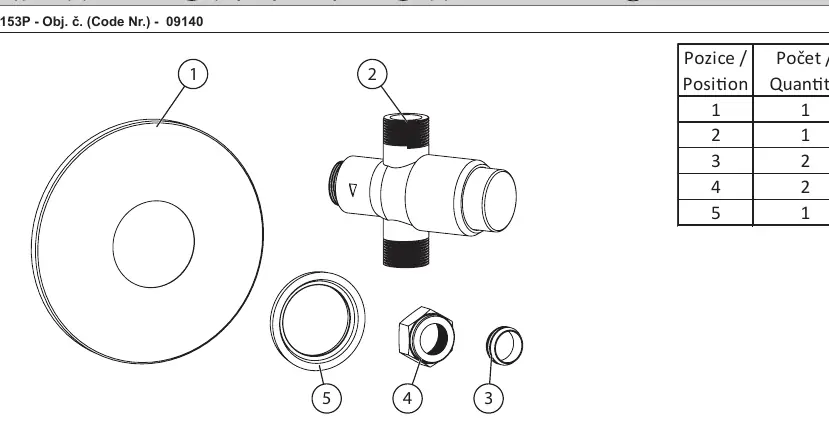

Parts list and supplied equipment
Parts list and supplied equipment

Installation

Follow these steps to install the tap:

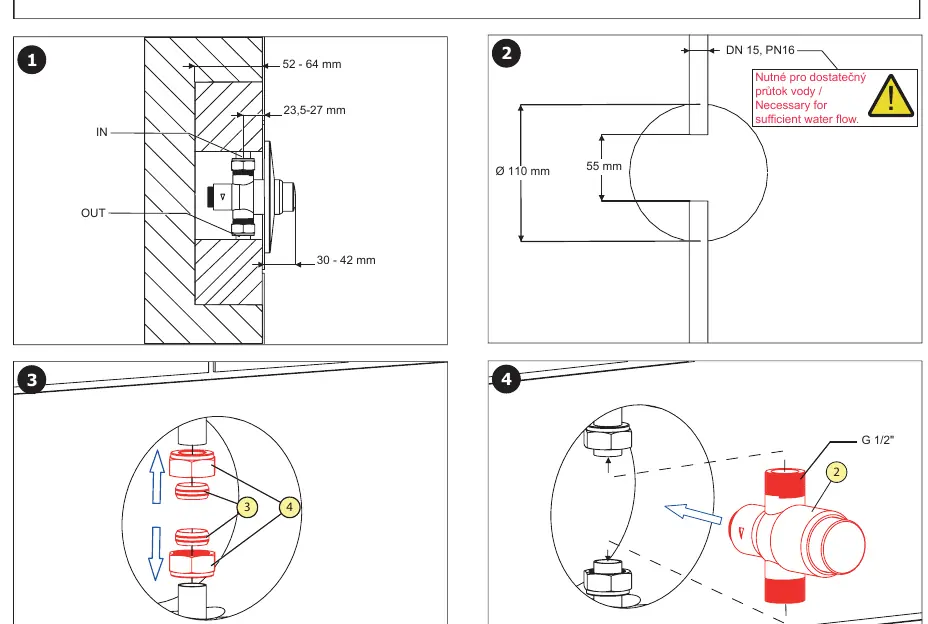

Installation steps 1-4
Installation steps 1-4
Water flow direction
Water flow direction

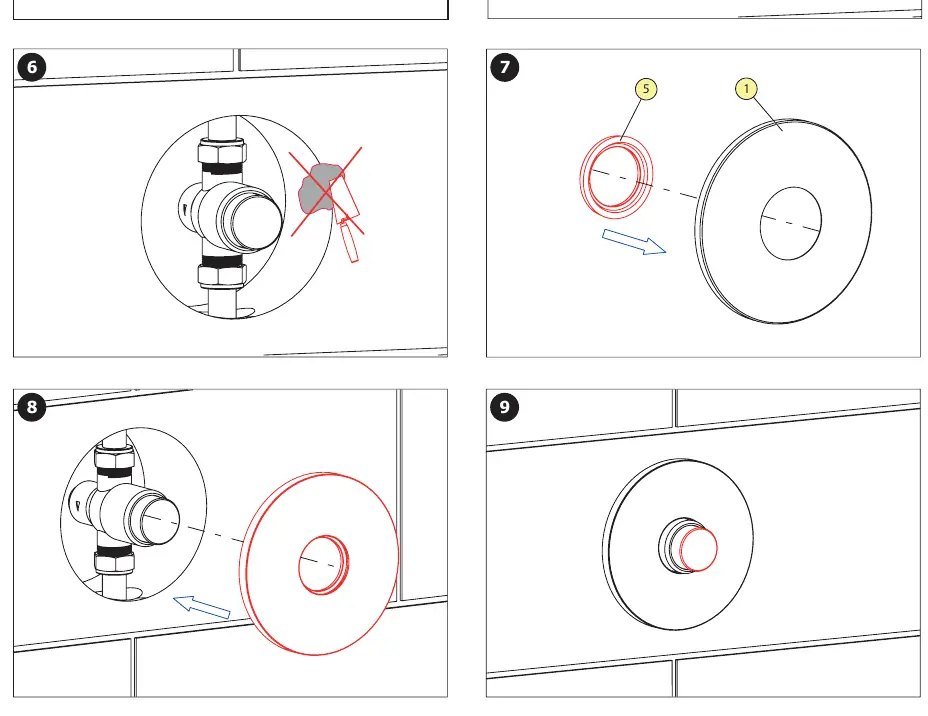

Installation steps 5-9
Installation steps 5-9
  1. Prepare the wall recess with a depth of 52-64 mm.
  2. Ensure the water supply line meets DN 15, PN16 standards for sufficient water flow.
  3. Connect the water supply to the valve body, paying close attention to the water flow direction marked on the unit.
  4. Install the valve body into the wall recess.
  5. Attach the cover plate and seal to complete the installation.

Maintenance

Regular maintenance is recommended to ensure the longevity of the product. For technical support, service interventions, or fault resolution, please contact your installation company or visit www.sanela.eu/service.

Official resources from the manual

Official resource www.sanela.eu/service

Manufacturer information

SANELA spol. s r. o.

Brand profile
Manufacturer website https://www.sanela.eu Support https://www.sanela.eu/service Manufacturer manuals https://www.sanela.eu/service-download

Practical help

Common problems

Insufficient water flow

Ensure the water supply meets DN 15, PN16 requirements and check for blockages in the line.

Incorrect installation depth

The wall recess must be between 52-64 mm deep for the cover plate to fit correctly.

Before use

  • Verify water pressure is between 0.1 and 0.5 MPa
  • Ensure sieve dimension is ≤ 90 µm
  • Check wall recess depth (52-64 mm)
  • Confirm water flow direction matches the arrow on the valve body
