Scheppach 14-Piece Pneumatic Accessory Set: Adapter Attachment Guide

Overview of the 14-Piece Pneumatic Accessory Set

The Scheppach 14-piece pneumatic accessory set includes various adapters designed for specific tools. This guide explains which adapters are compatible with the blow gun and the tire inflator, as well as the correct method for attaching them to ensure proper operation.

Blow Gun

The blow gun is designed to be used with the two silver extensions provided in the set. These extensions feature a specific thread that matches the blow gun. To attach them, simply screw the desired silver extension directly onto the nozzle of the blow gun until secure.

Tire Inflator

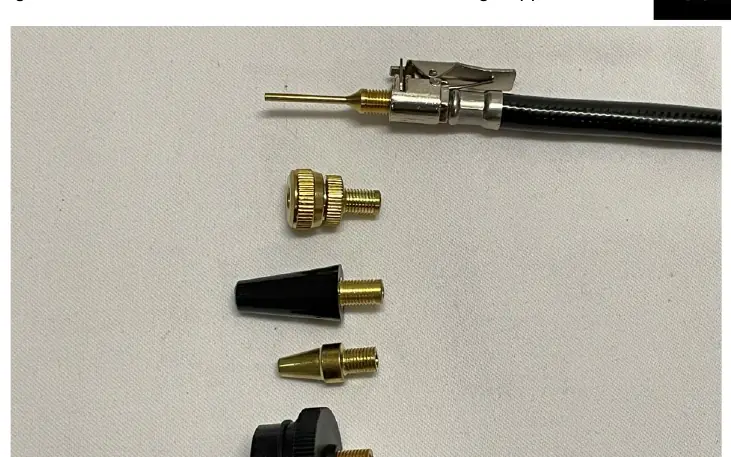

The tire inflator uses the black hose for connection. All adapters included in the set that feature a brass-colored thread are specifically designed for use with the tire inflator. Unlike the blow gun extensions, these brass-threaded adapters are not screwed directly into the inflator body. Instead, they are clipped into the end of the black hose.

Universal Adapter

The set includes a special universal adapter that serves as a base for additional attachments. You can screw the following components onto the universal adapter to expand its functionality:

• Bleeder valve adapter
• Screw valve adapter
• Large universal adapter

Ensure all connections are tightened appropriately before applying air pressure to prevent leaks or accidental detachment during use.
