Screwfix 105mm Traditional Dual Flush Plate Installation Guide
Quick installation guide for the Screwfix 105mm Traditional Dual Flush Plate. Includes aperture dimensions, mounting bracket installation, and flush plate attachment steps.
Table of contents
Quick Installation Guide
This document provides the essential steps for installing the Screwfix 105mm Traditional Dual Flush Plate with a concealed cistern. Before beginning, ensure you have checked for any obstructions behind the wall, such as pipes or electrical cables.

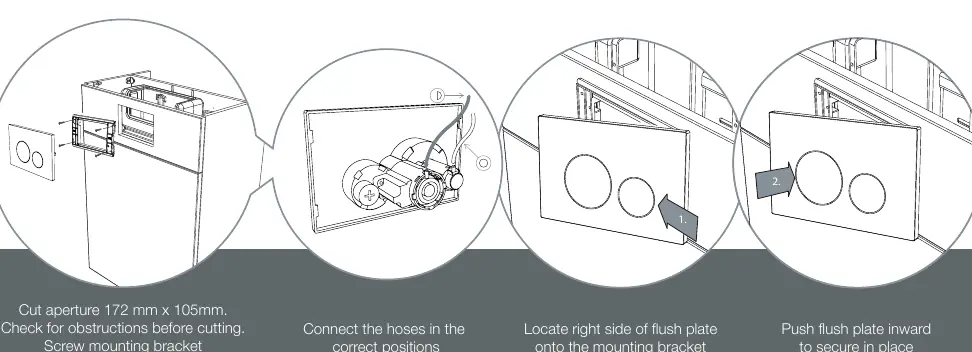

Installation Steps
- Prepare the Aperture: Cut an aperture measuring 172 mm x 105 mm. Always check for obstructions behind the wall before cutting.
- Mounting: Secure the mounting bracket to the unit using the provided screws.
- Connections: Connect the hoses to the correct positions on the flush mechanism.
- Attach Plate: Locate the right side of the flush plate onto the mounting bracket and push it to the left.
- Secure: Push the flush plate inward to lock it into place.
Important Notes
For installations involving a wall-hung frame or specific in-wall cisterns, please refer to the relevant product instructions provided with those systems, as installation requirements may differ.
Practical help
Common problems
Verify the aperture cut size is exactly 172mm x 105mm.
Ensure the mounting bracket is screwed securely to the unit first, then locate the right side of the plate onto the bracket before pushing left.
Before use
- Check for obstructions (pipes/cables) behind the wall.
- Measure and mark the 172mm x 105mm aperture.
- Ensure the mounting bracket is available.
- Verify the cistern type is compatible.
